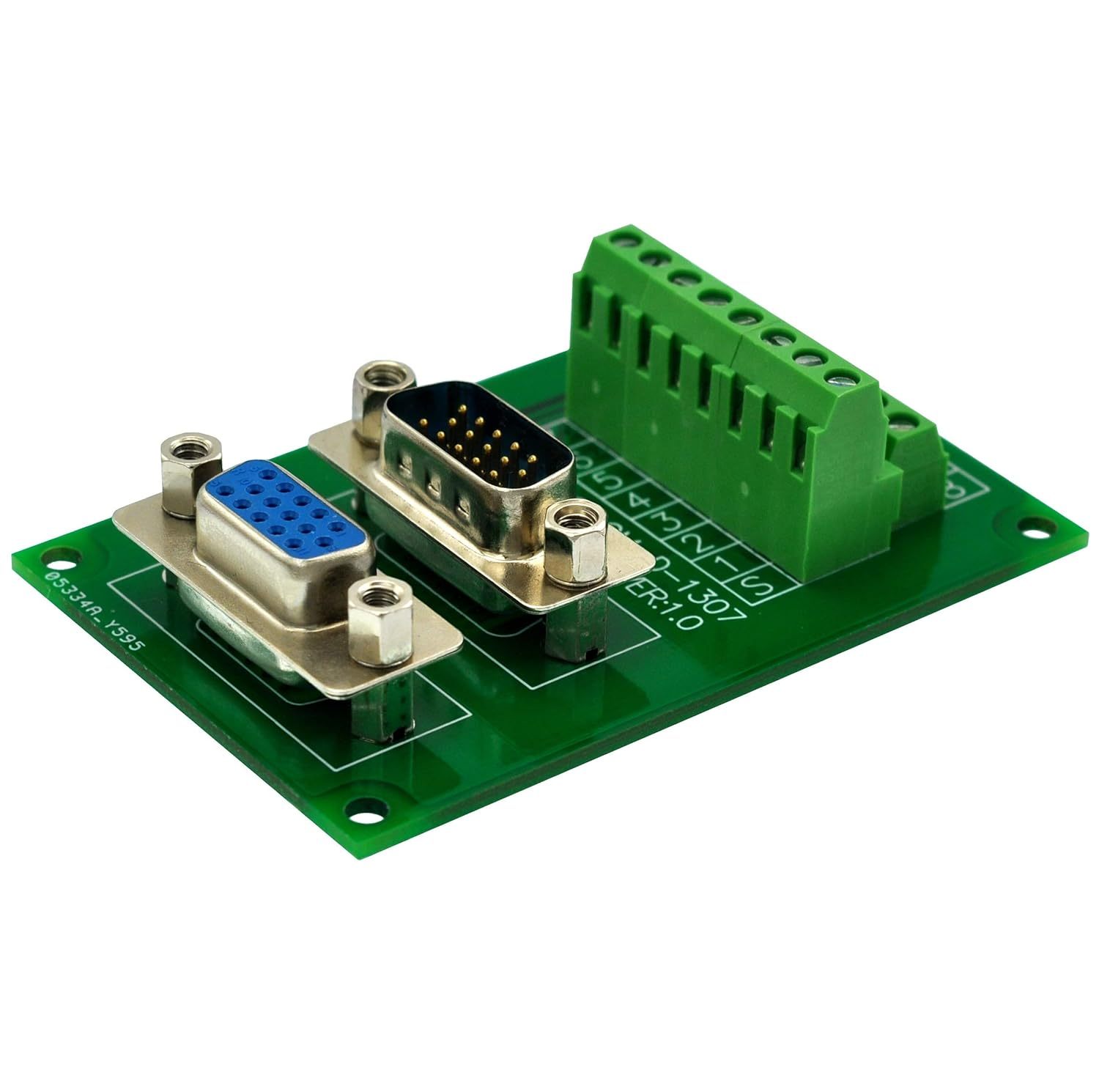

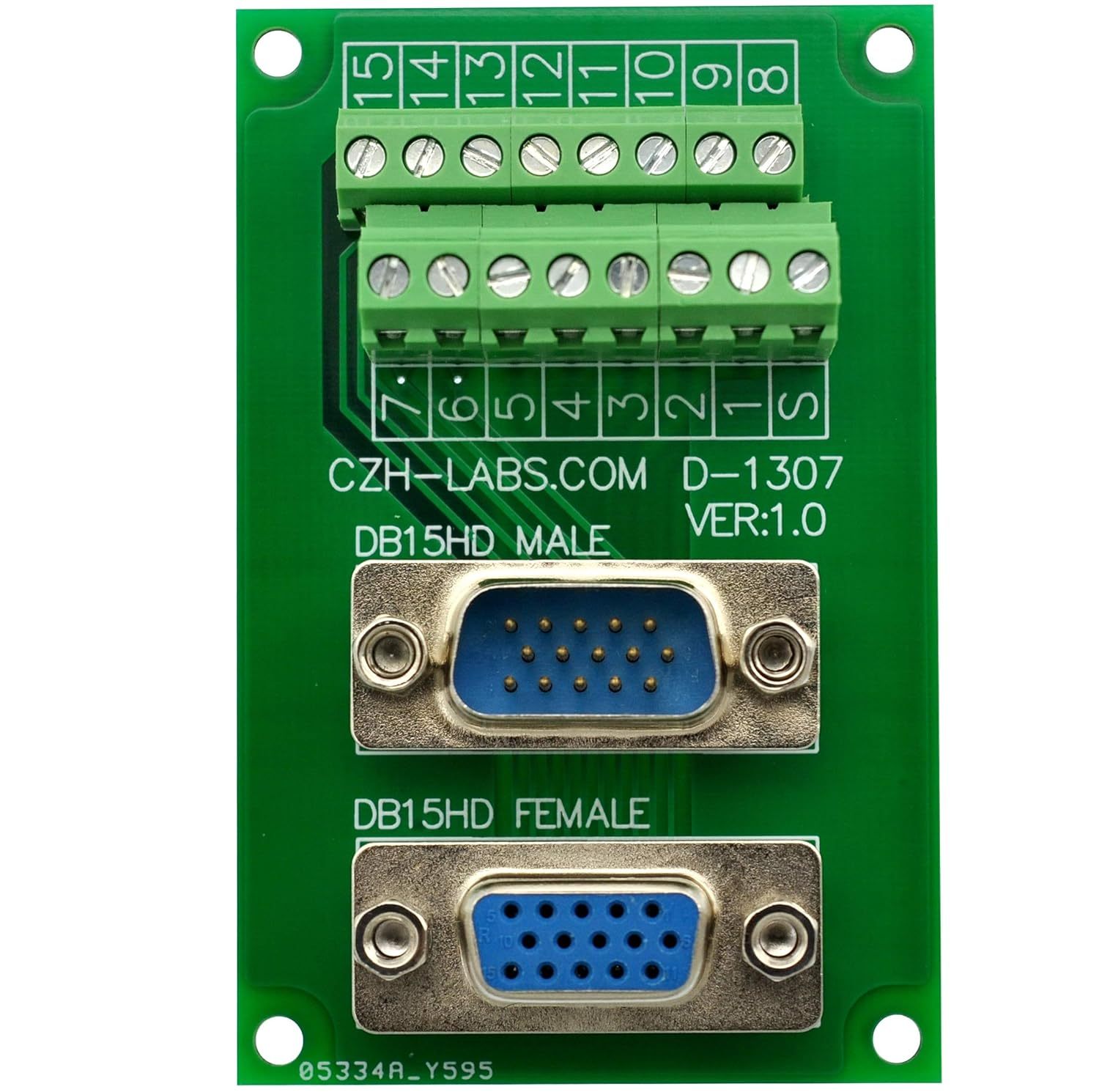

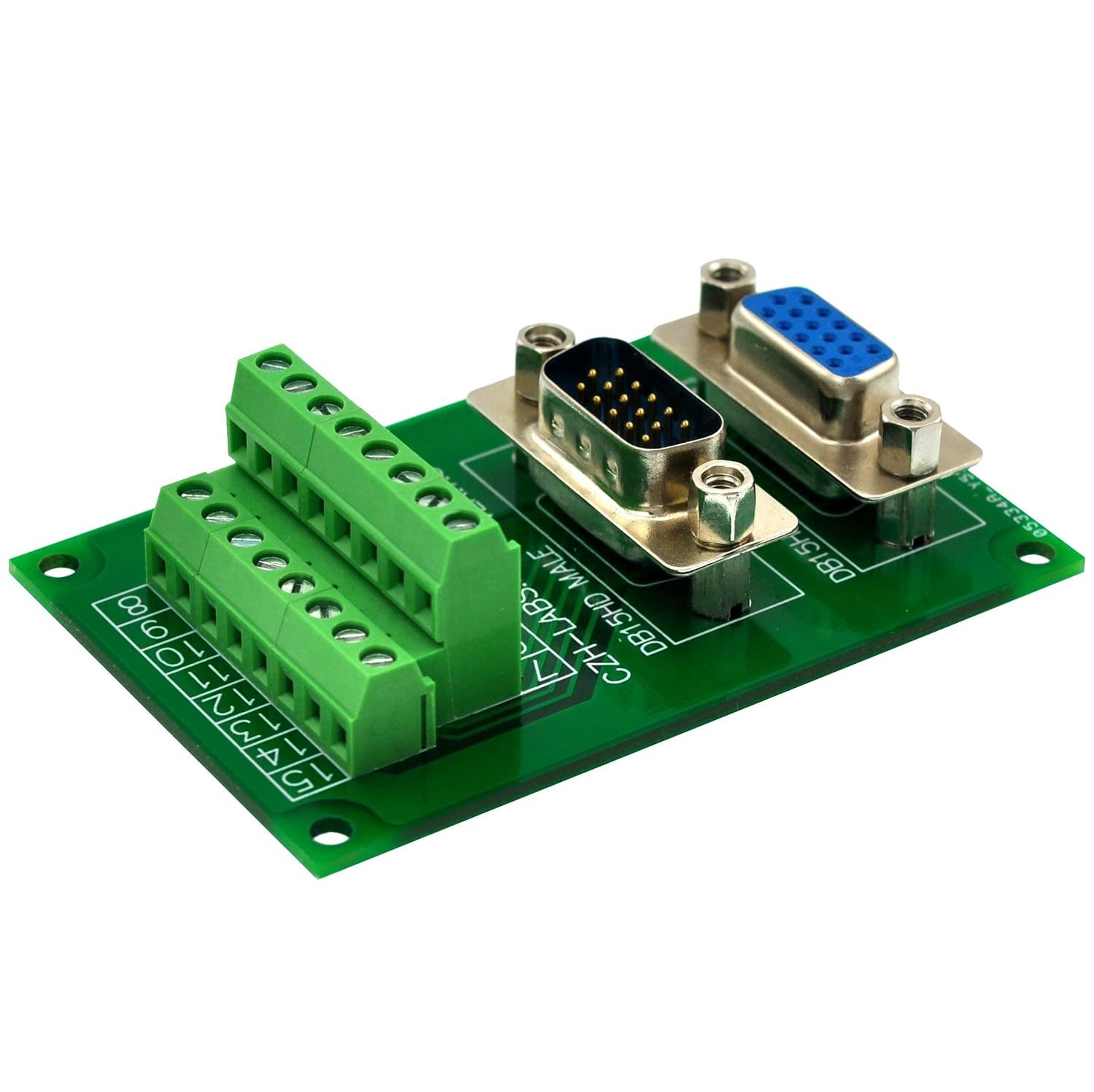

CZH-LABS DSUB DB15HD Male/Female Header Breakout Board, D-SUB Breakout Moudle.
CZH-LABS DSUB DB15HD Male/Female Header Breakout Board, D-SUB Breakout Moudle.
$242.99 USD
$249.99 USD
Salvar $7.00 USD
Frete
calculado no checkout
Qtd
Adicionar ao carrinho
About this item
Standard DB15HD Male/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.
Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20C to 50C
Terminal block: Pitch 3.81mm/0.15" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
FR-4 fiber glass PCB, dual copper layers.
