Load Maximum Current: +/-5Amp, +/-20Amp and +/-30Amp selectable. Load Frequency Bandwidth: DC ~ 80 kHz. Minimum Isolation Voltage: 2.1 kV(RMS). Operating Voltage: Regulated 5VDC, or 8 ~ 35VDC. Operating Current: 20mA(max).
The item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection.
Output voltage proportional to AC or DC currents.

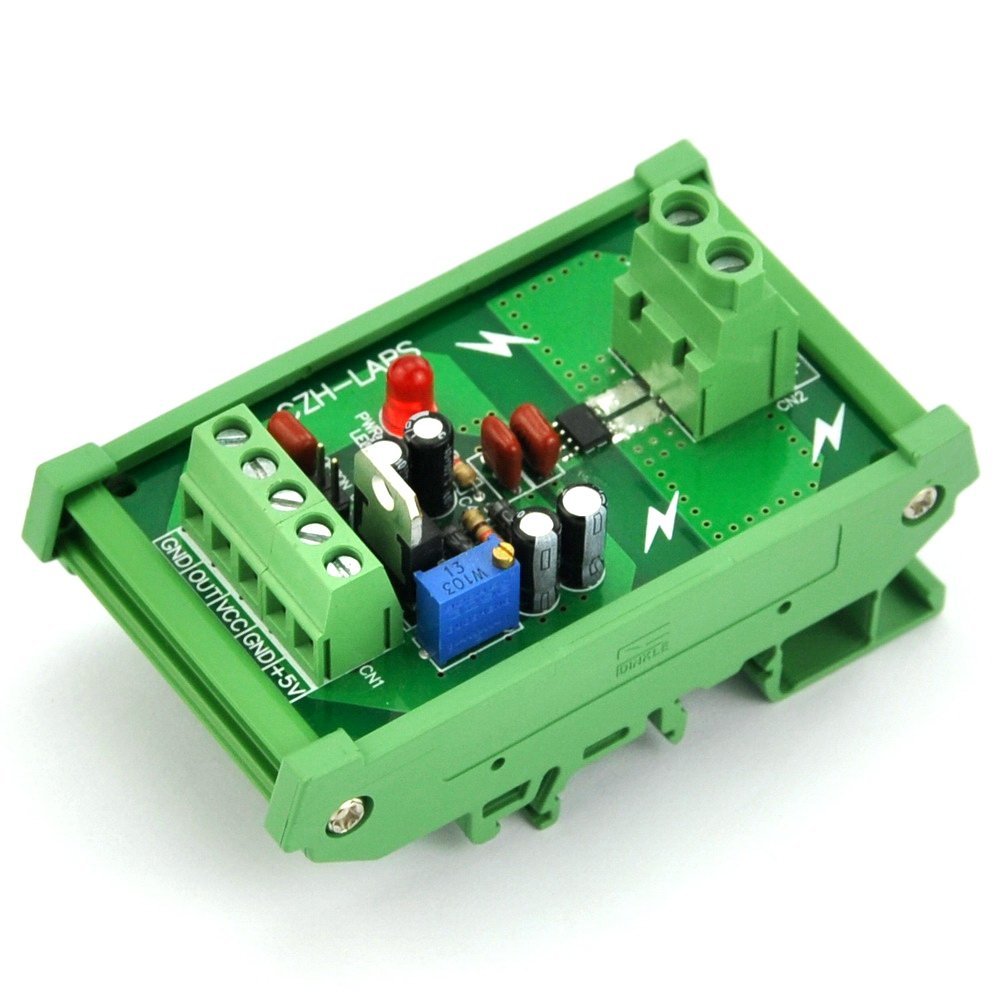

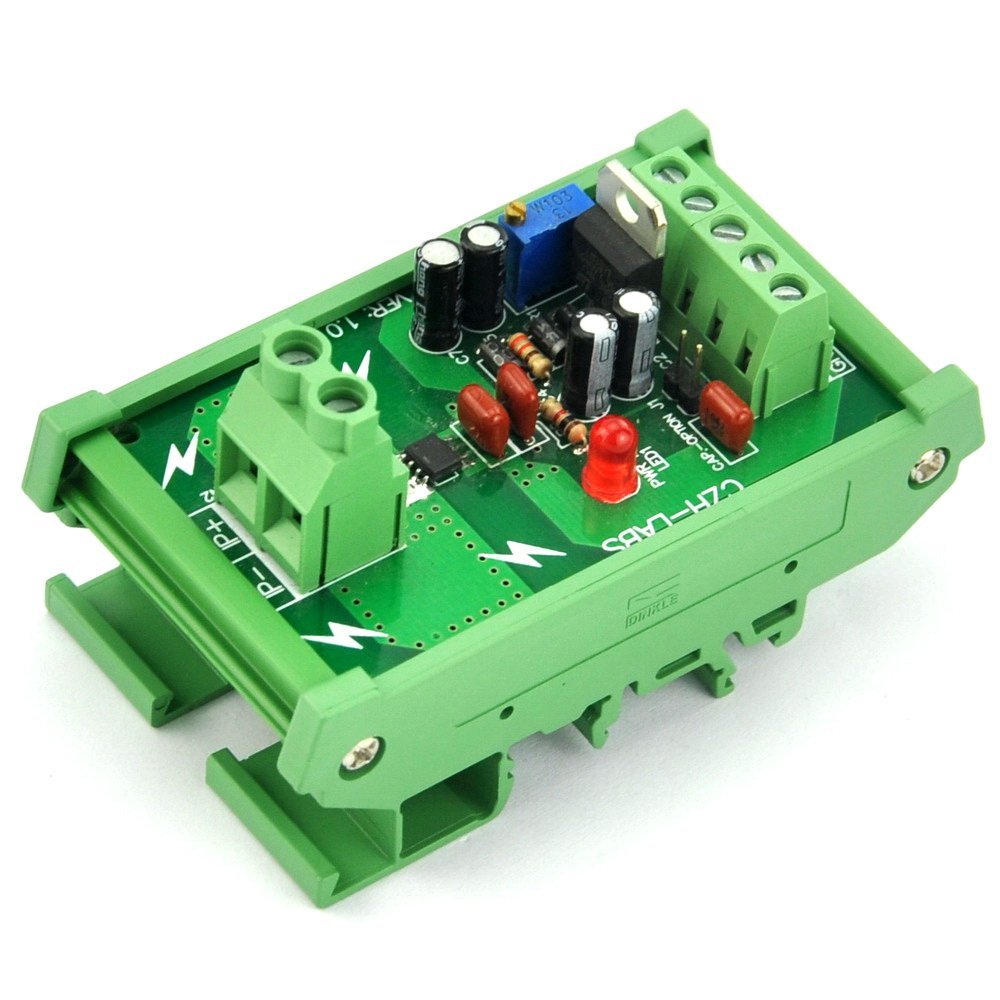

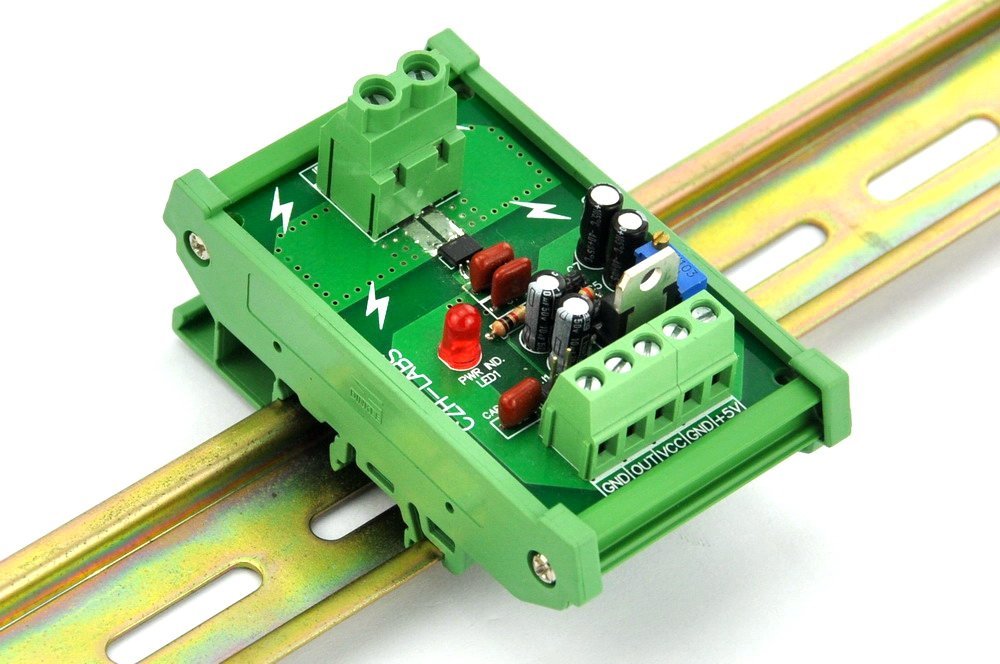

High quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for PCB screw mount use.
