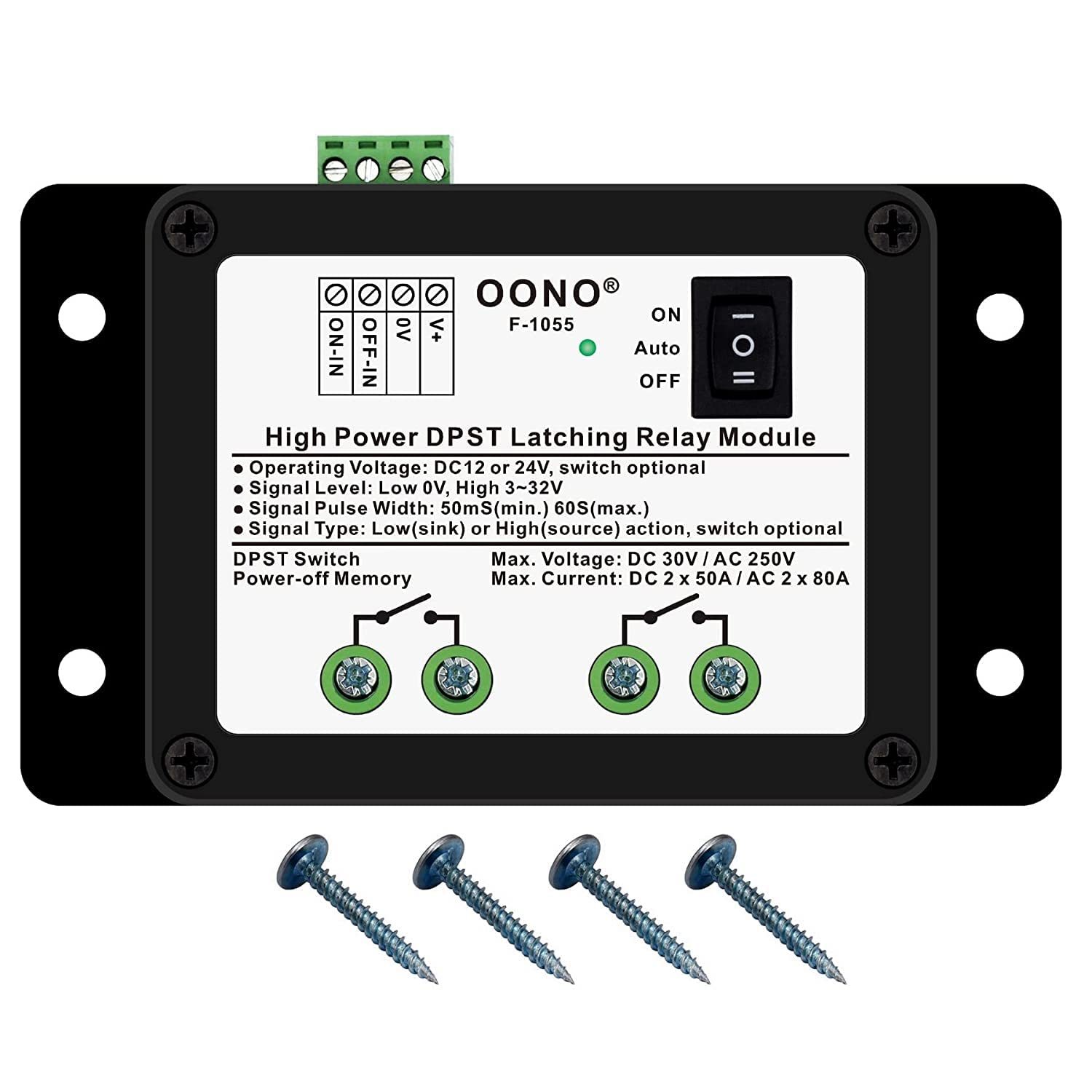

If you are looking for a latching relay with power-off memory, then this module will be very suitable for you. Even if the operating power is turned off, the status of the output switch will not be affected in any way, it will remain in the state before the power was turned off.
Output switch DPST (Double Pole Single Throw). Rated current/voltage AC 80A/250V or DC 50A/30V (each switch channel).

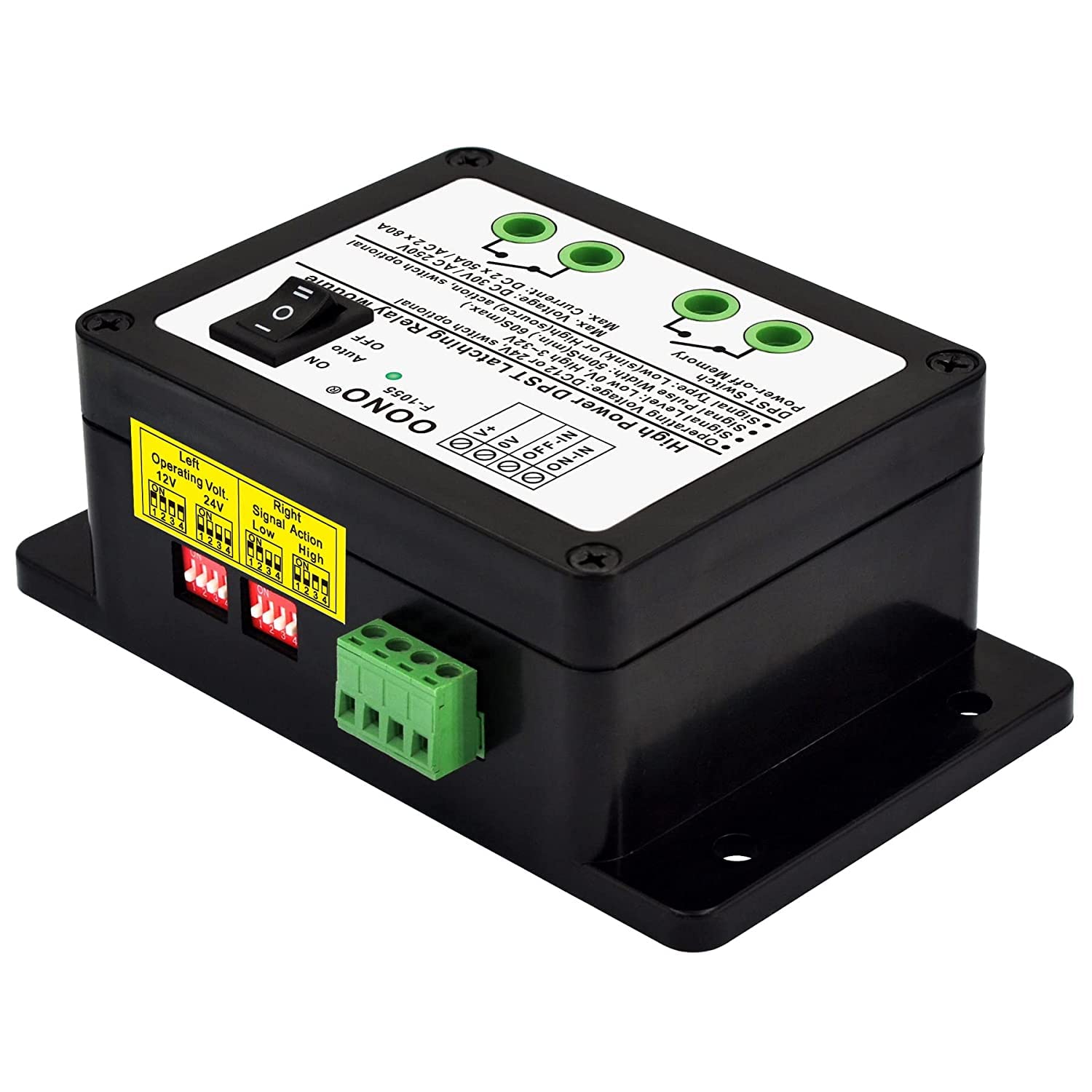

Operating voltage support DC 12V / 24V, the red DIP switch on the side can be set.

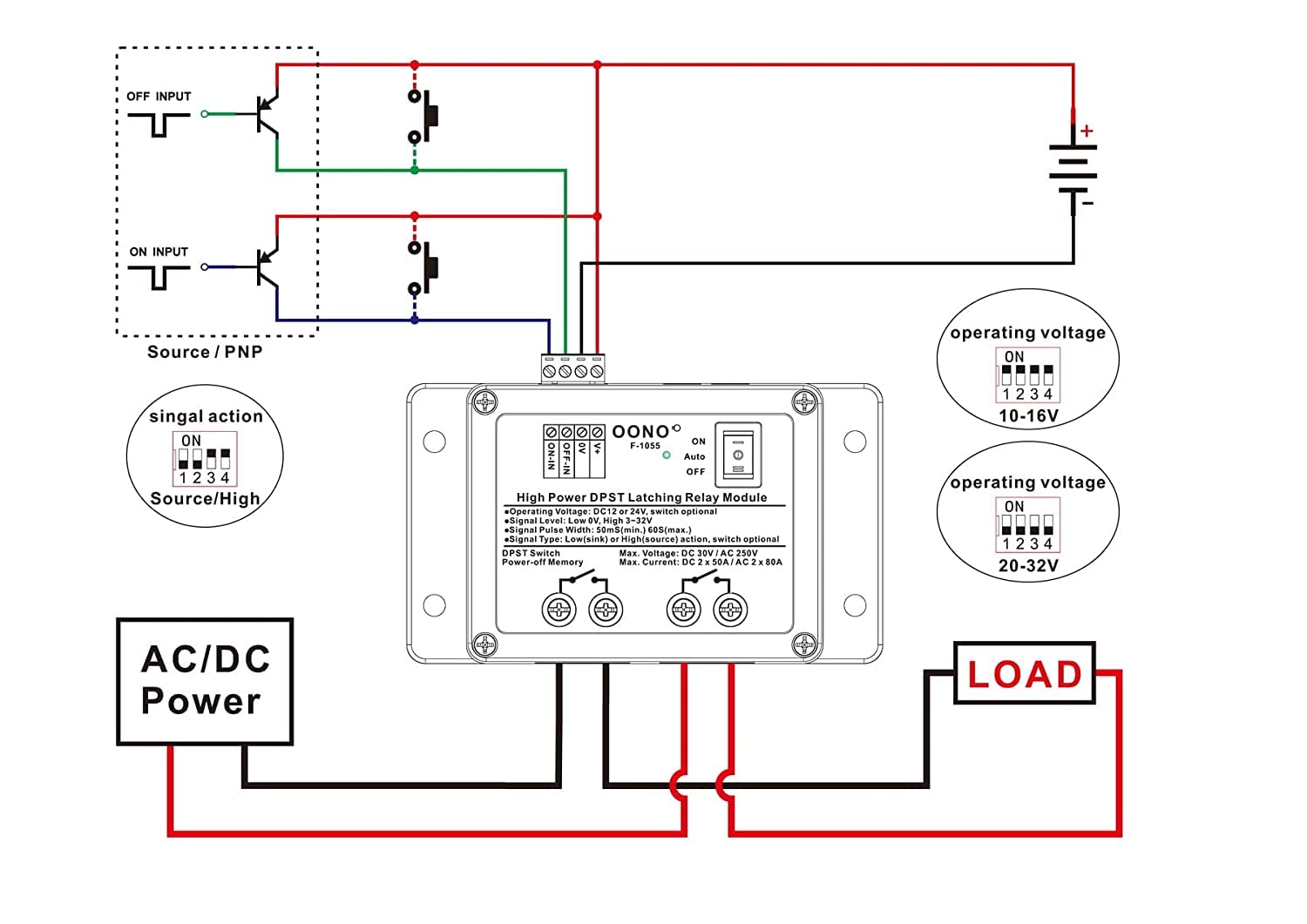

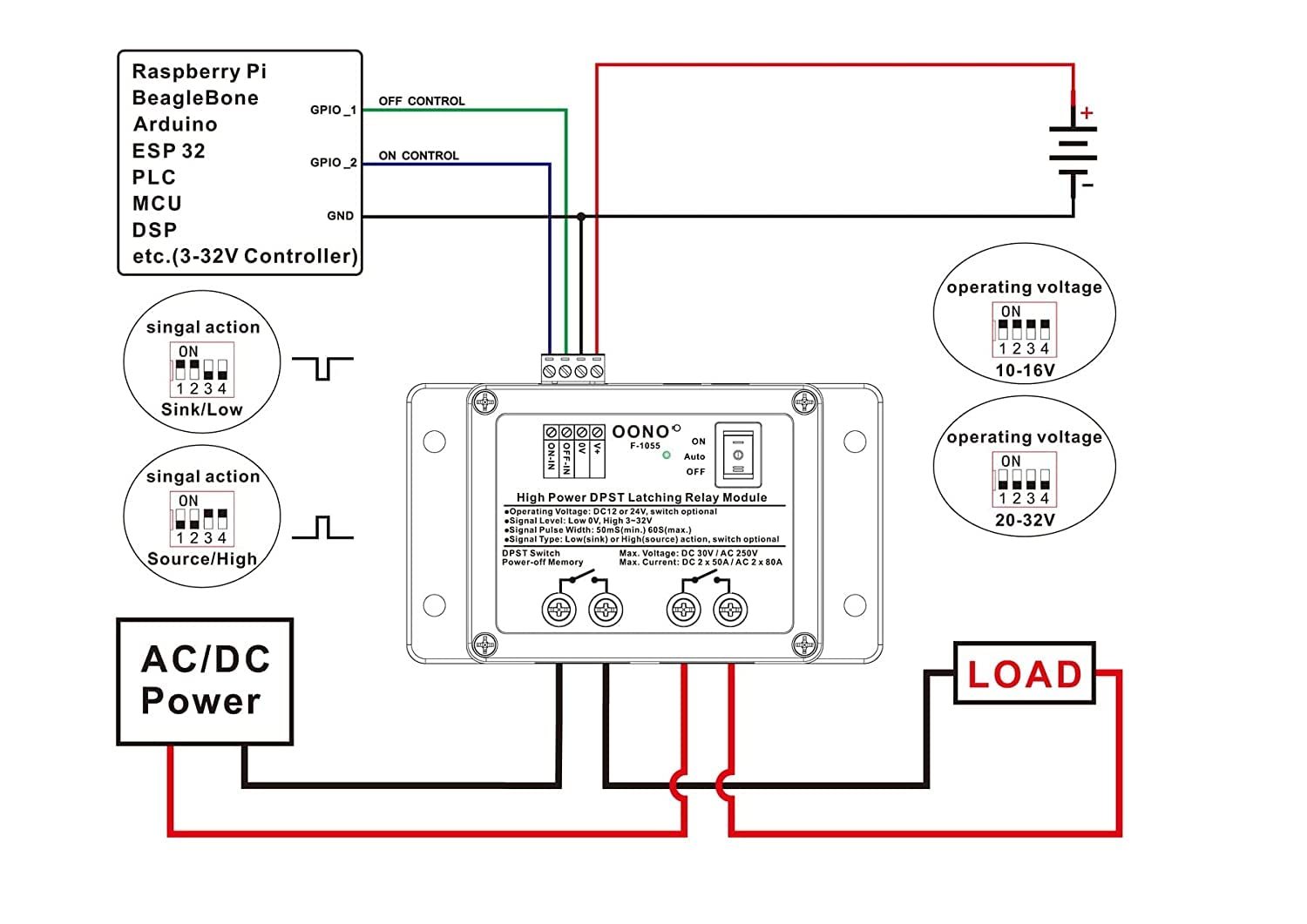

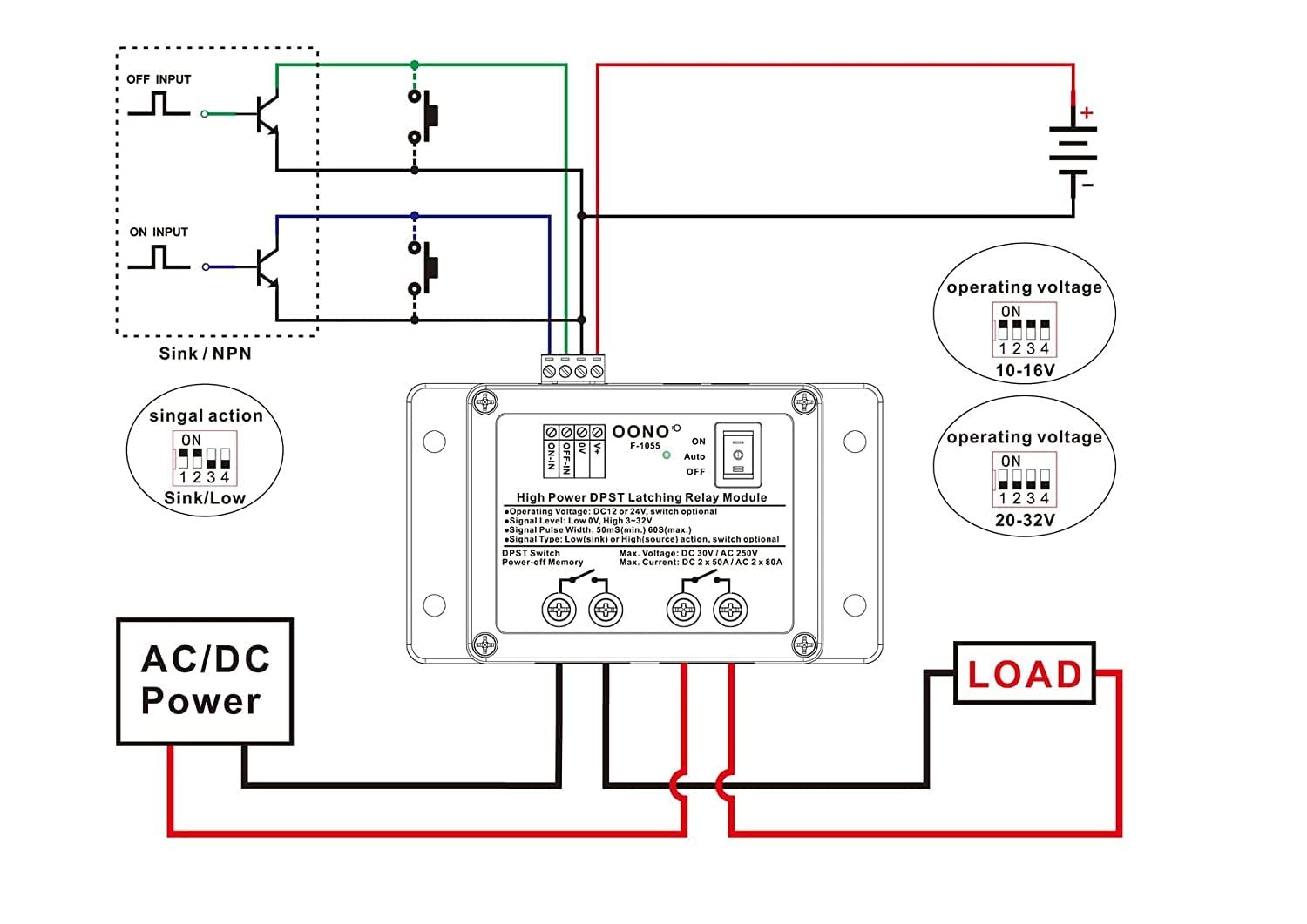

Support signal High or Low action, the red DIP switch on the side can be set. Can support multiple types of controllers, Raspberry Pi / Arduino / ESP32 / BeagleBone / PLC / MCU / DSP etc, of course you can also directly connect two momentary switches. With override switch function, override switch setting to ON or OFF, external control signals will be invalid.

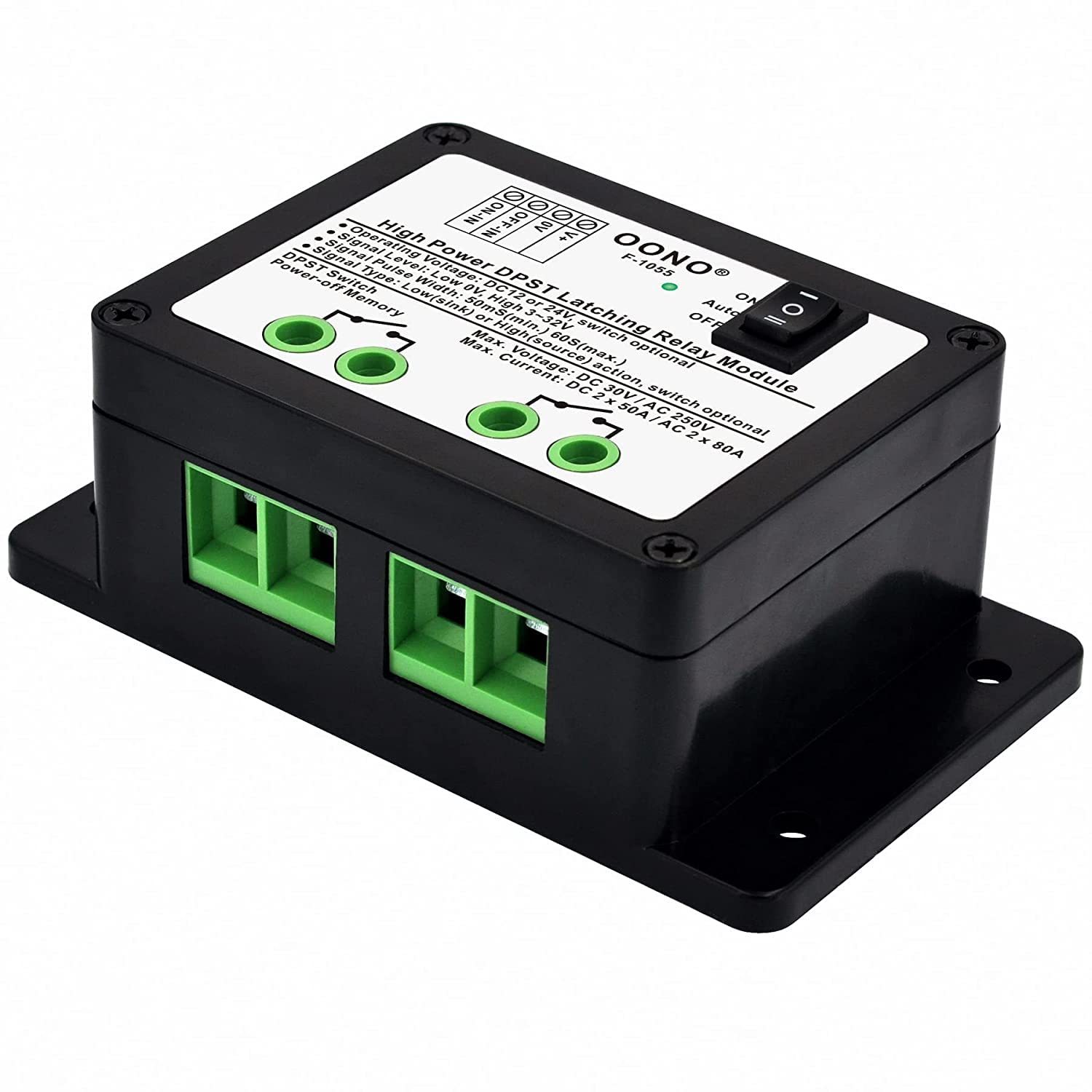

Screw-type terminal blocks facilitate the connection of cables. The ABS plastic shell ensures better electrical insulation.
