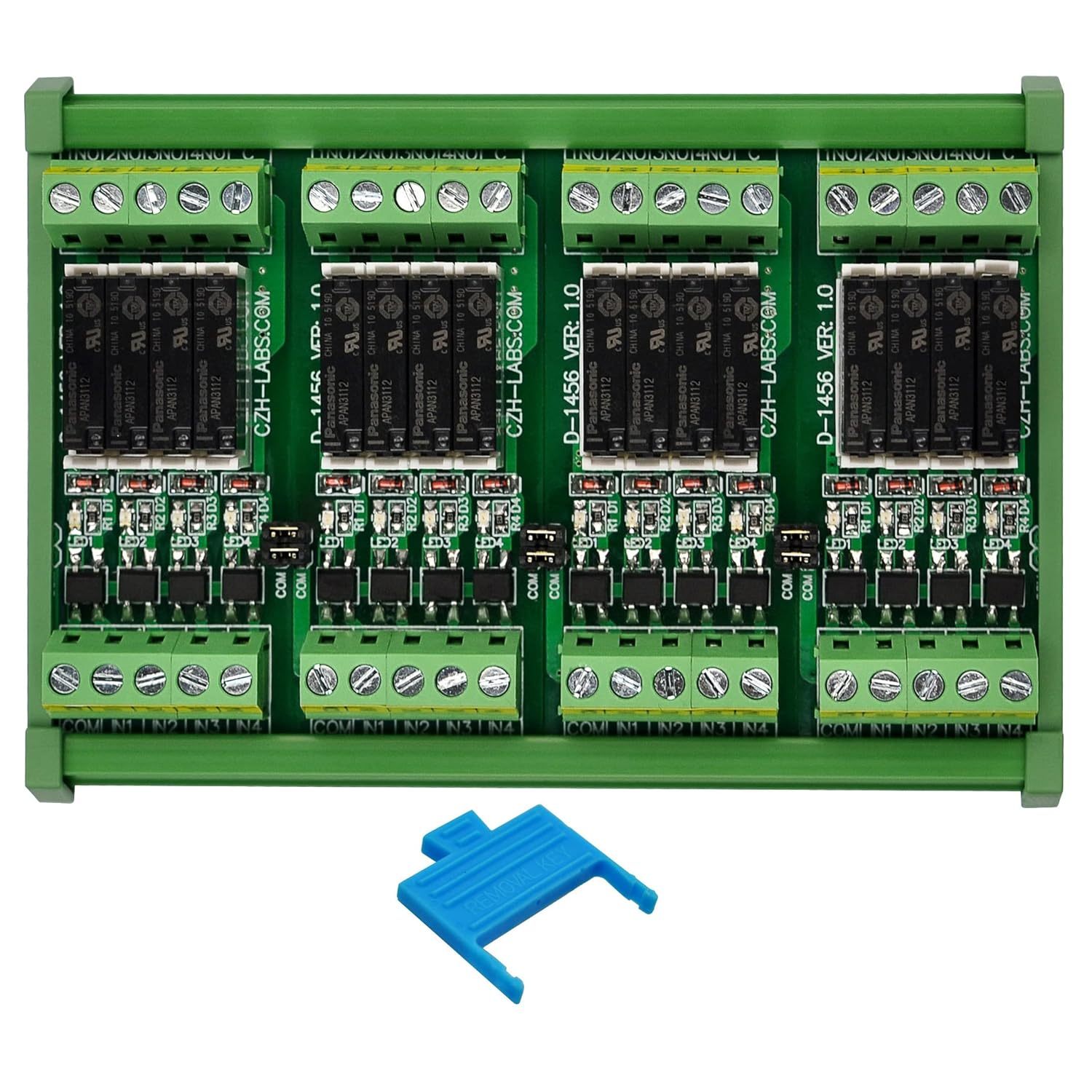

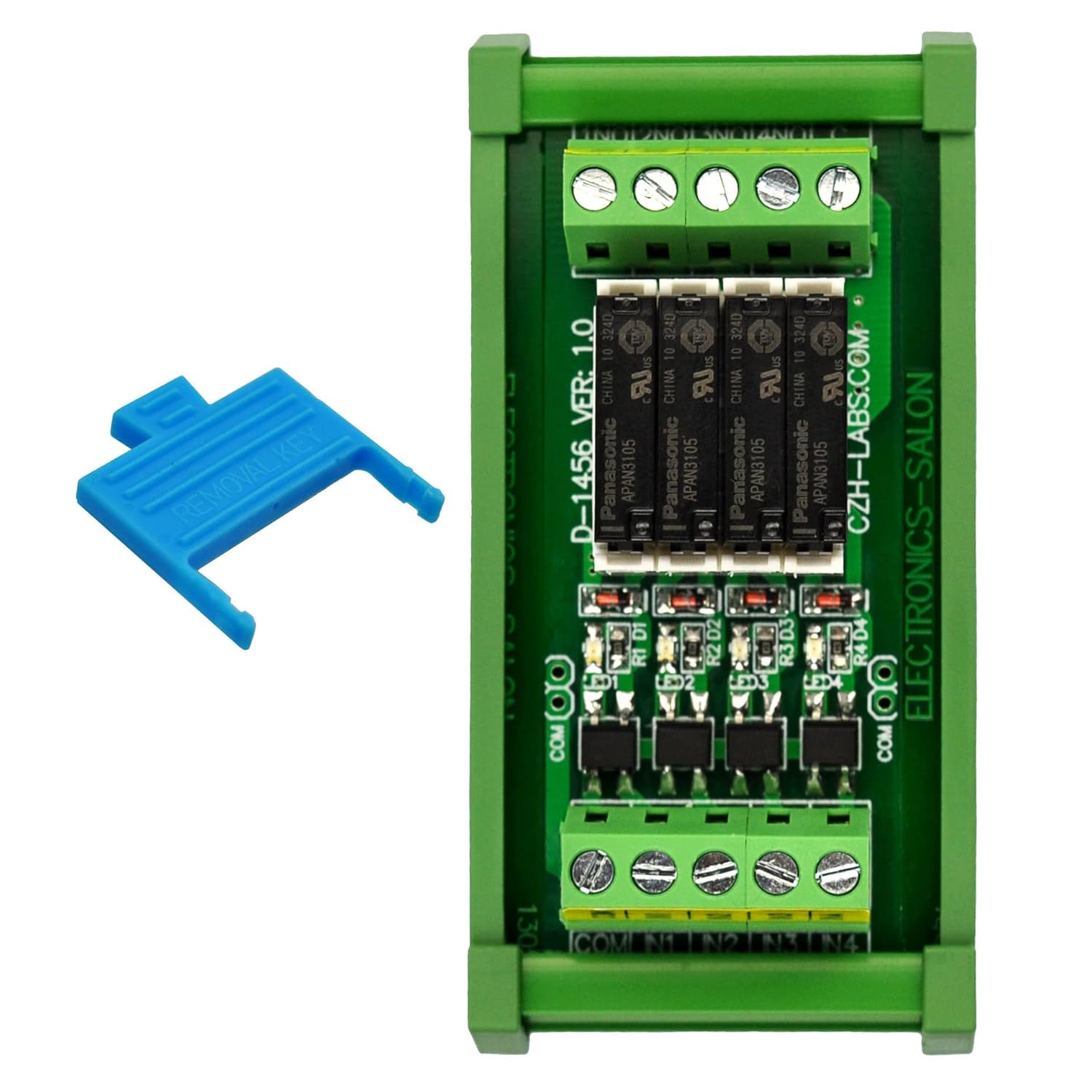

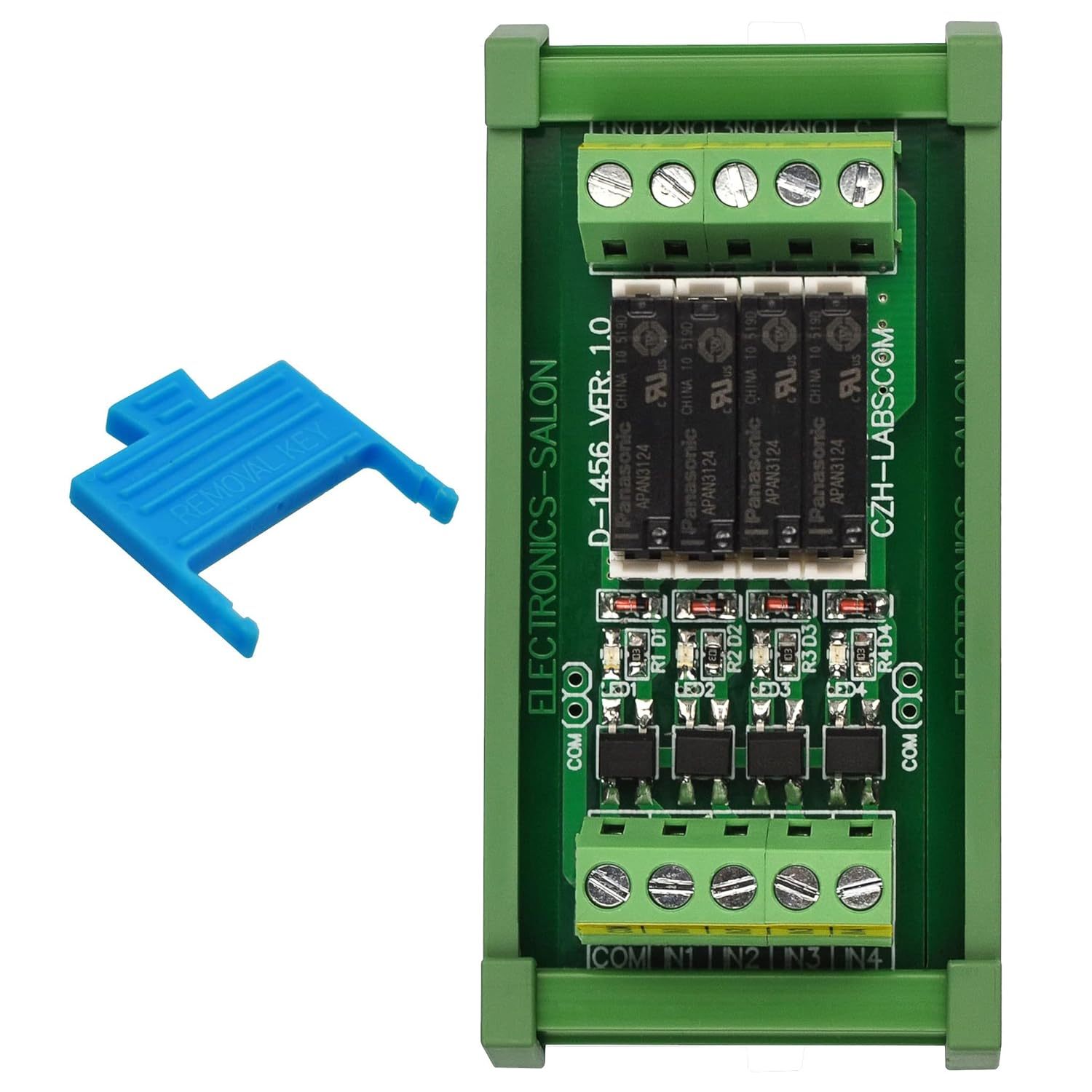

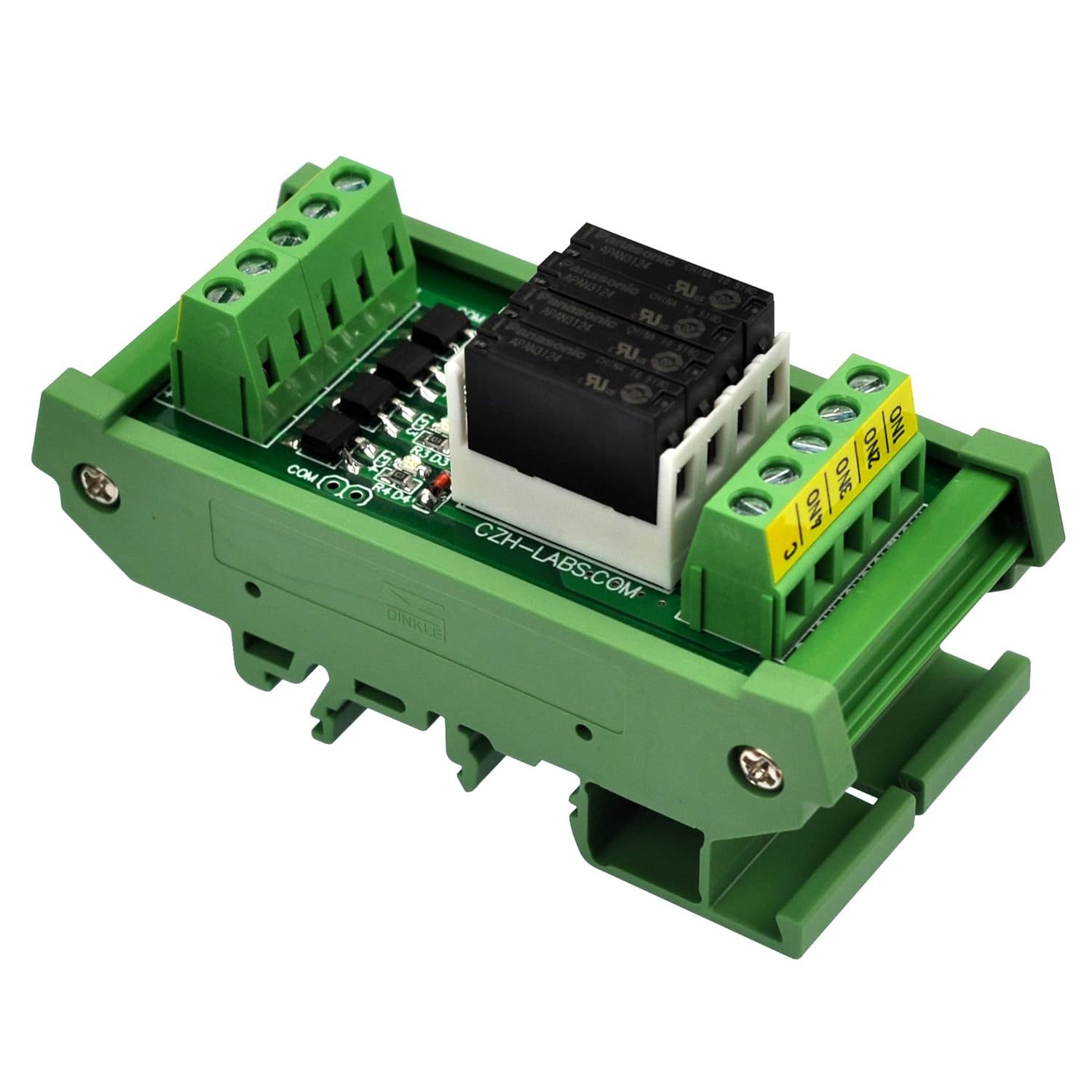

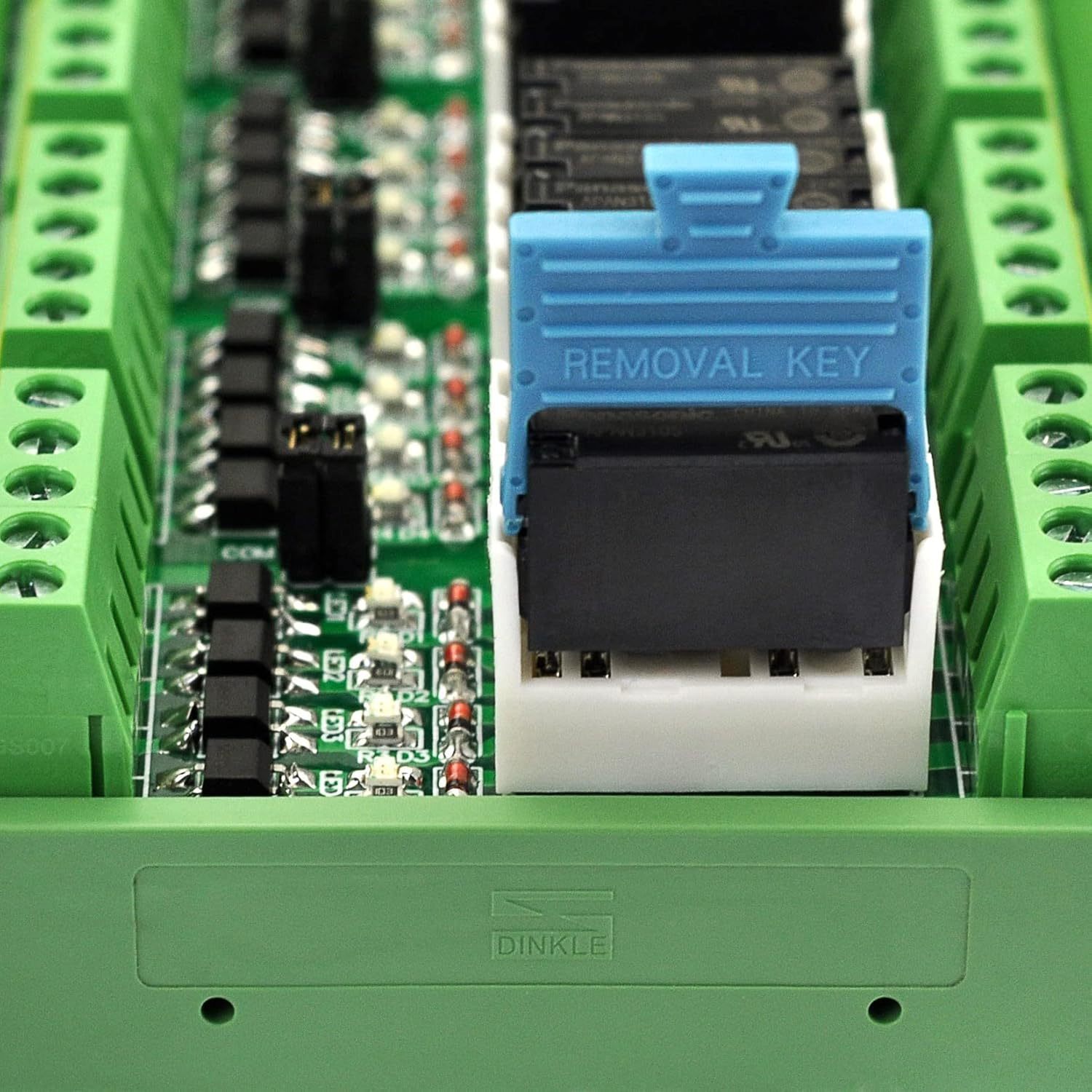

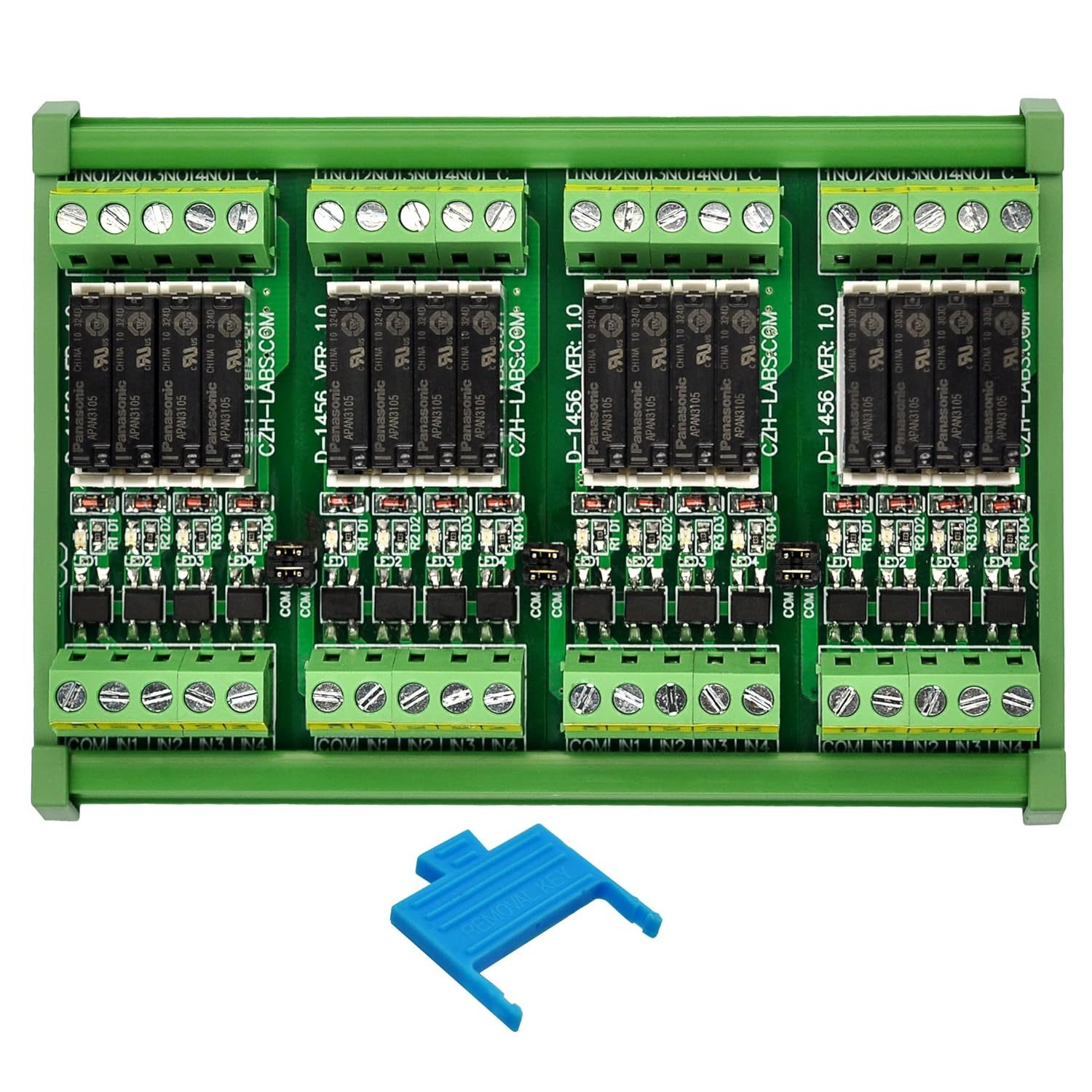

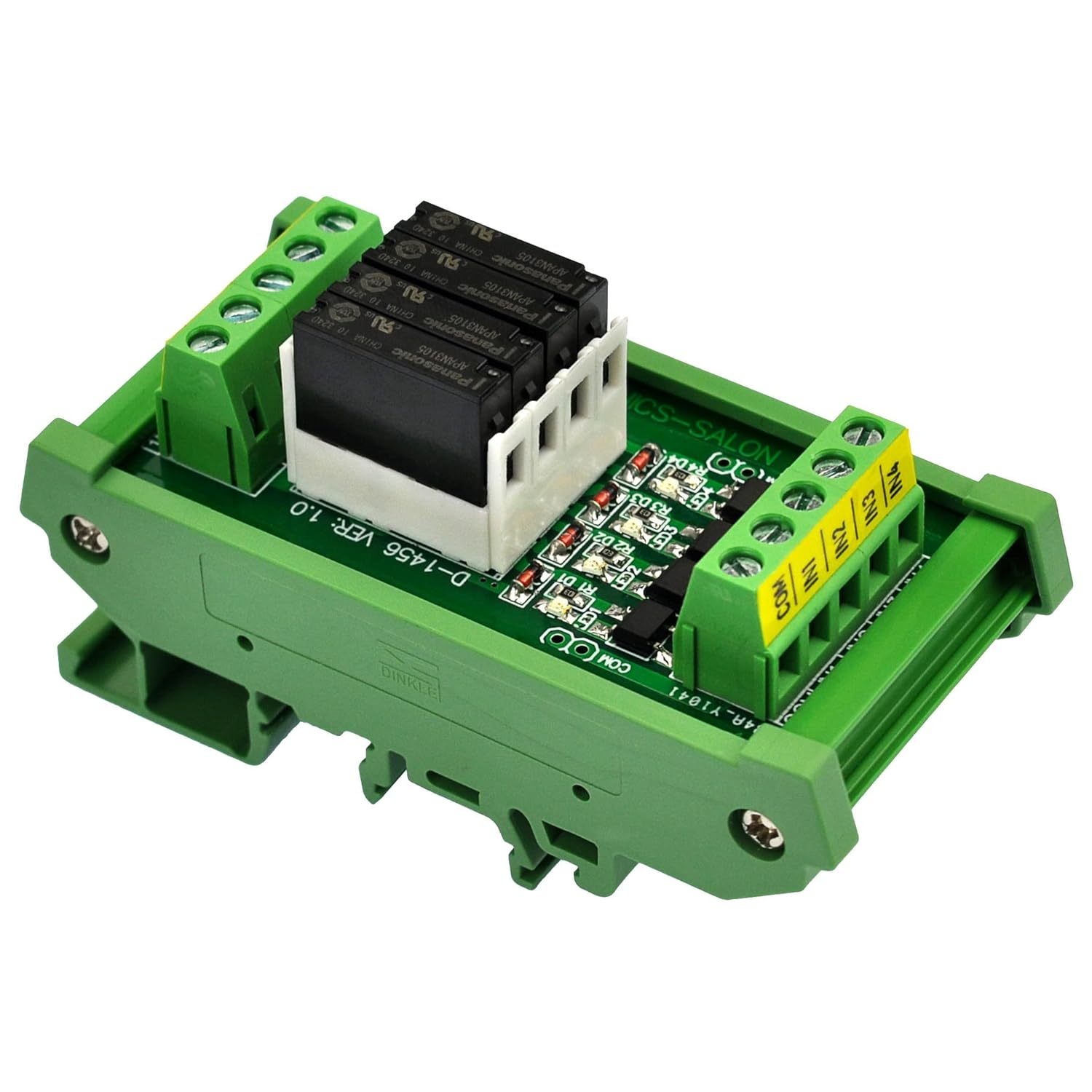

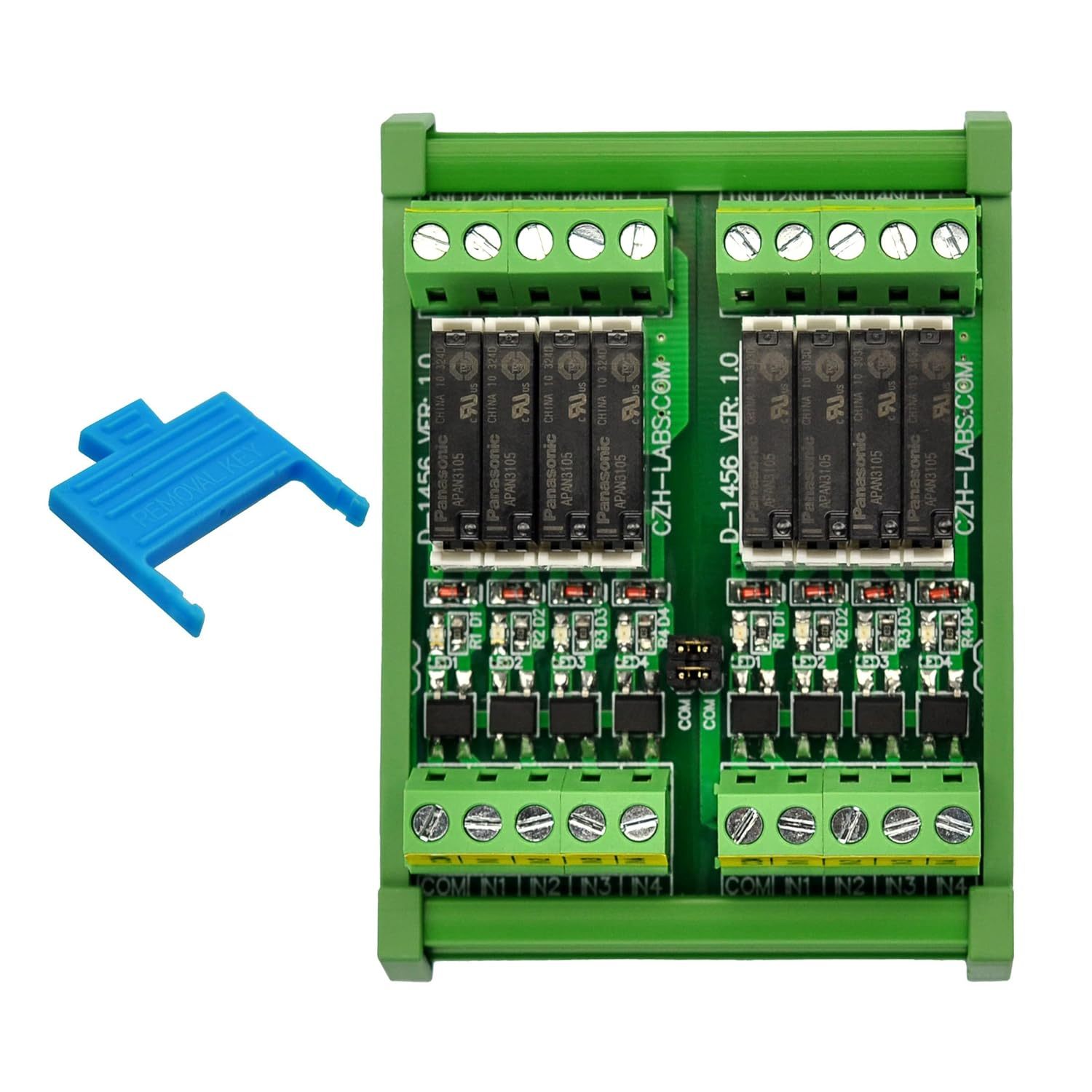

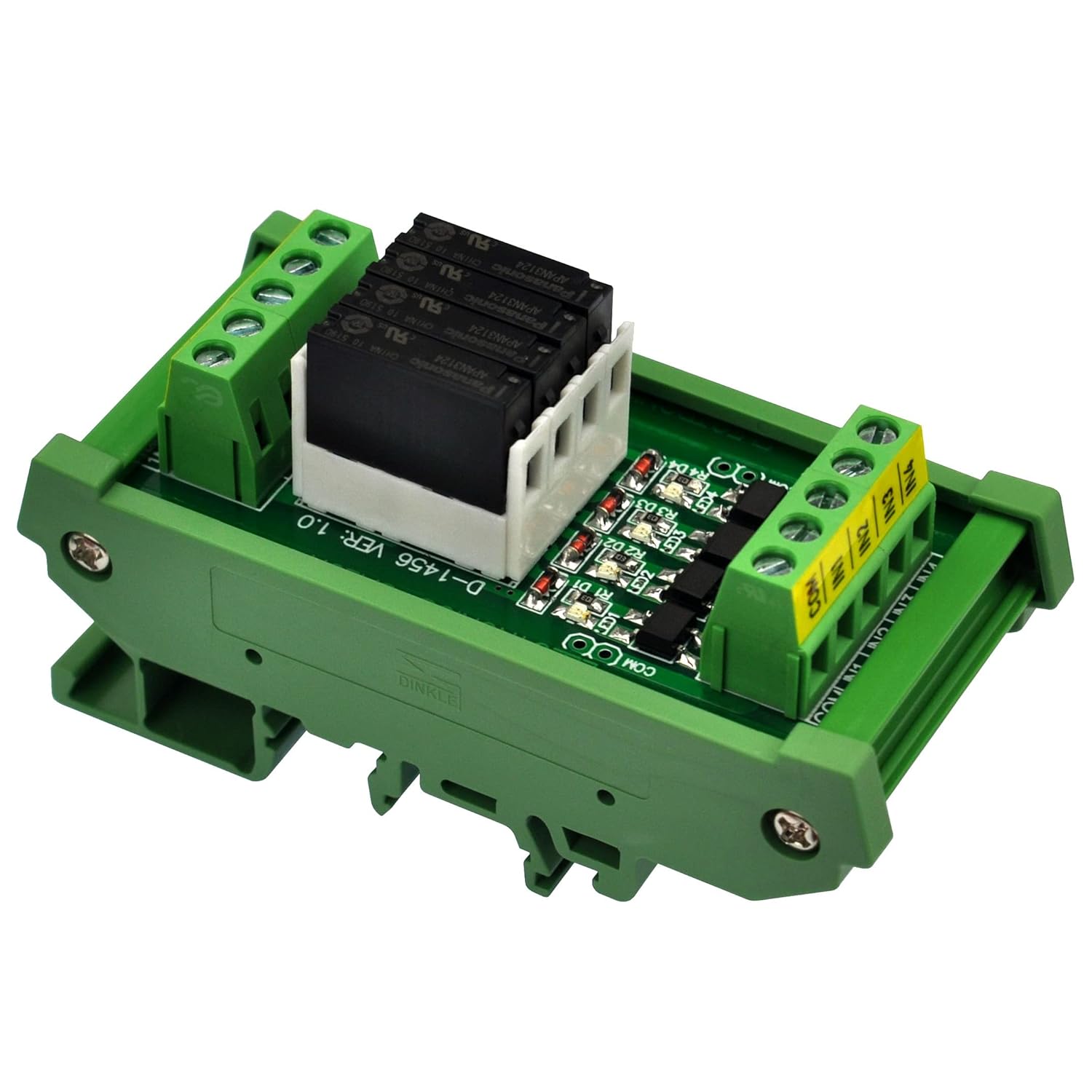

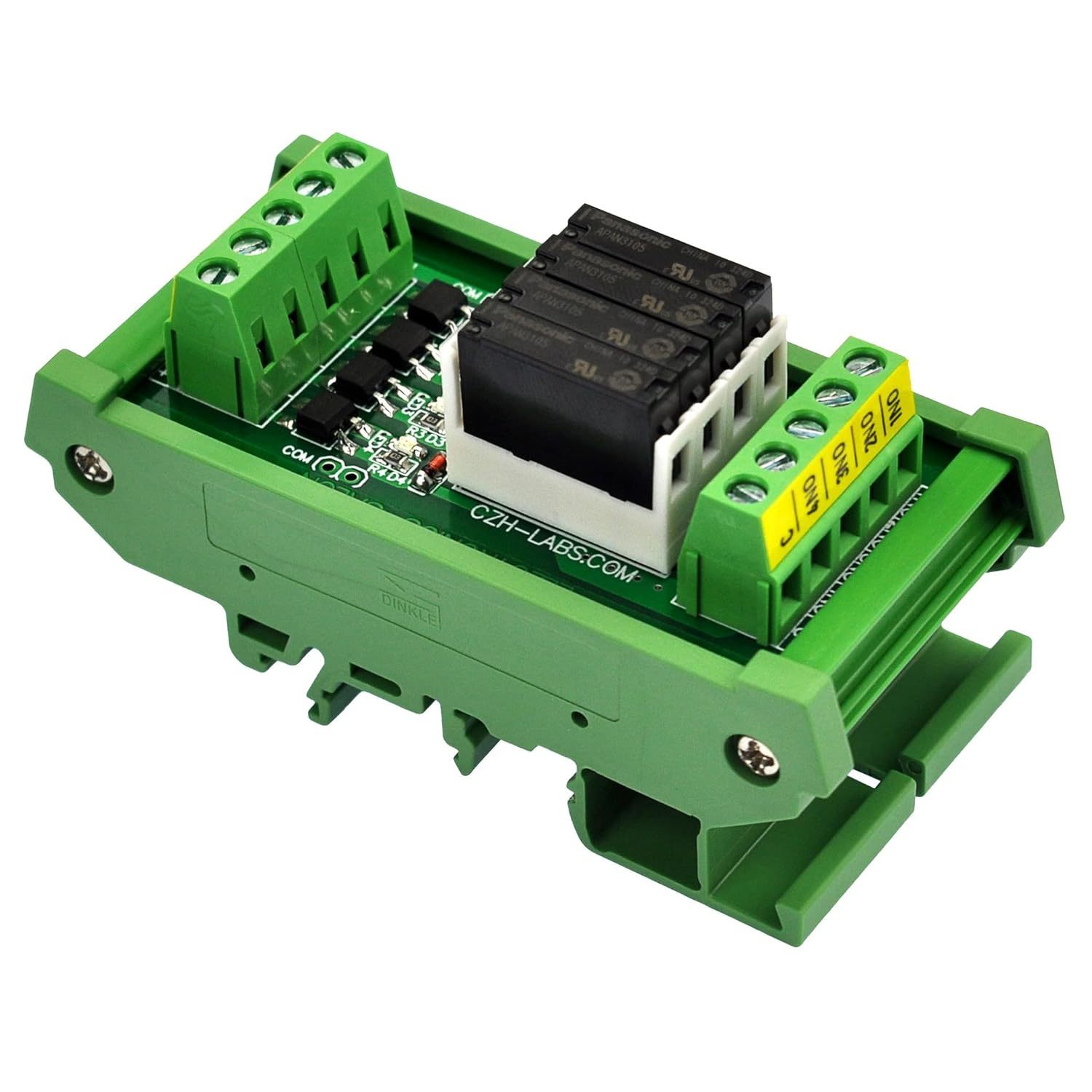

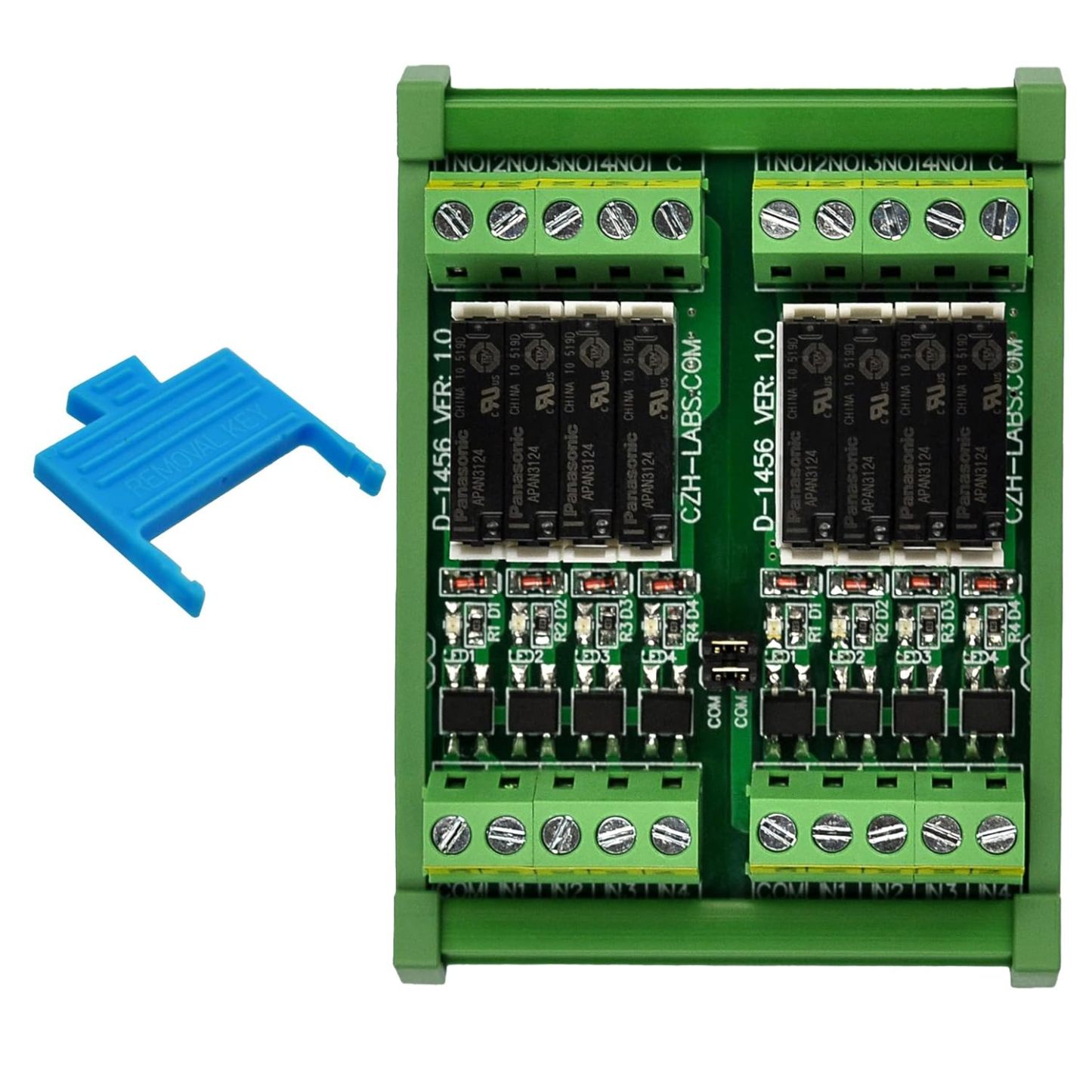

Original Panasonic APAN3105, APAN3112 or APAN3124 relay, with removal key, easy to replace pluggable relay. Relay switch type SPST-NO(when the relay no action switch status off). Switching current up to 5Amp/250V or 5Amp/30VDC.

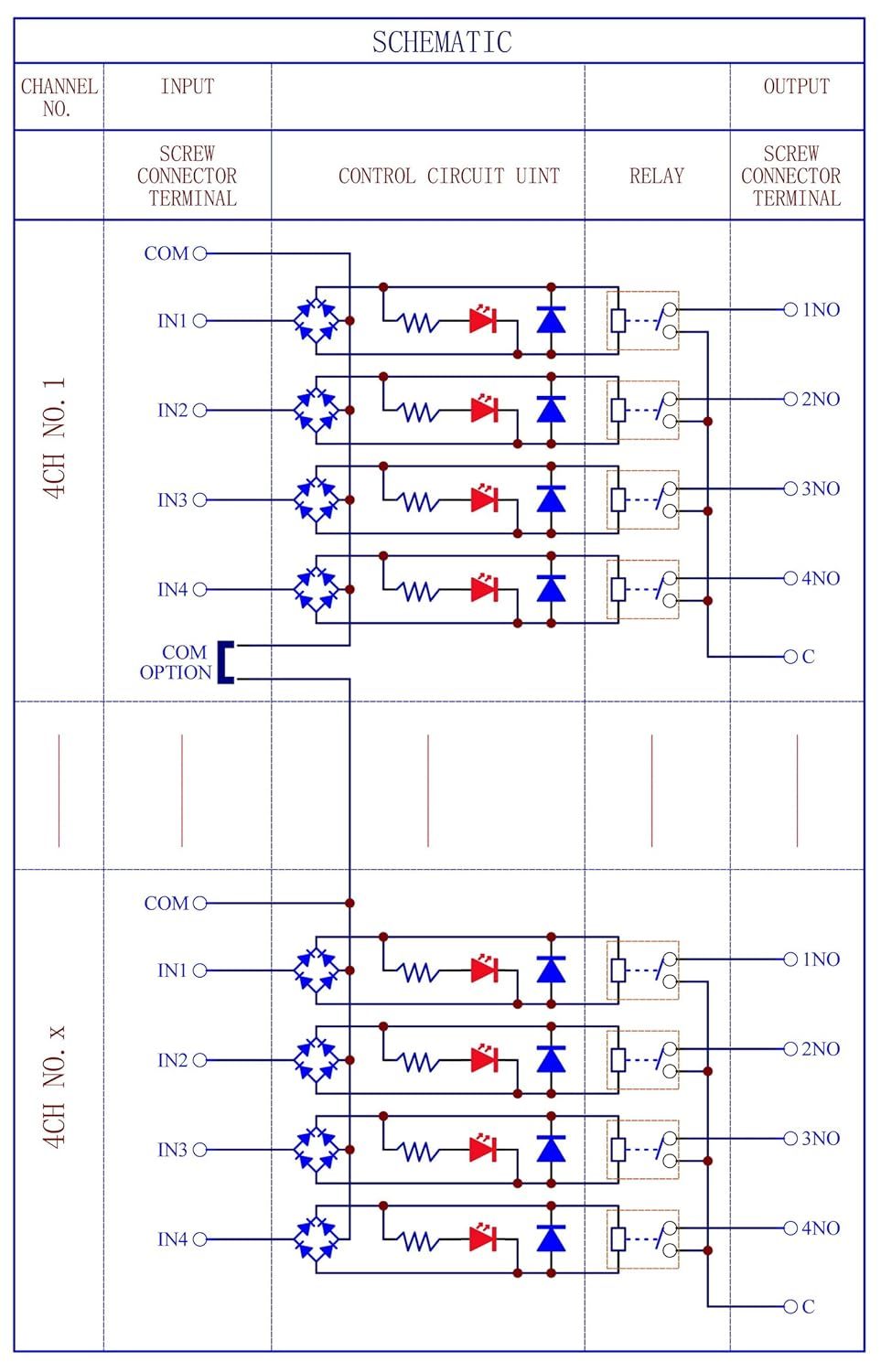

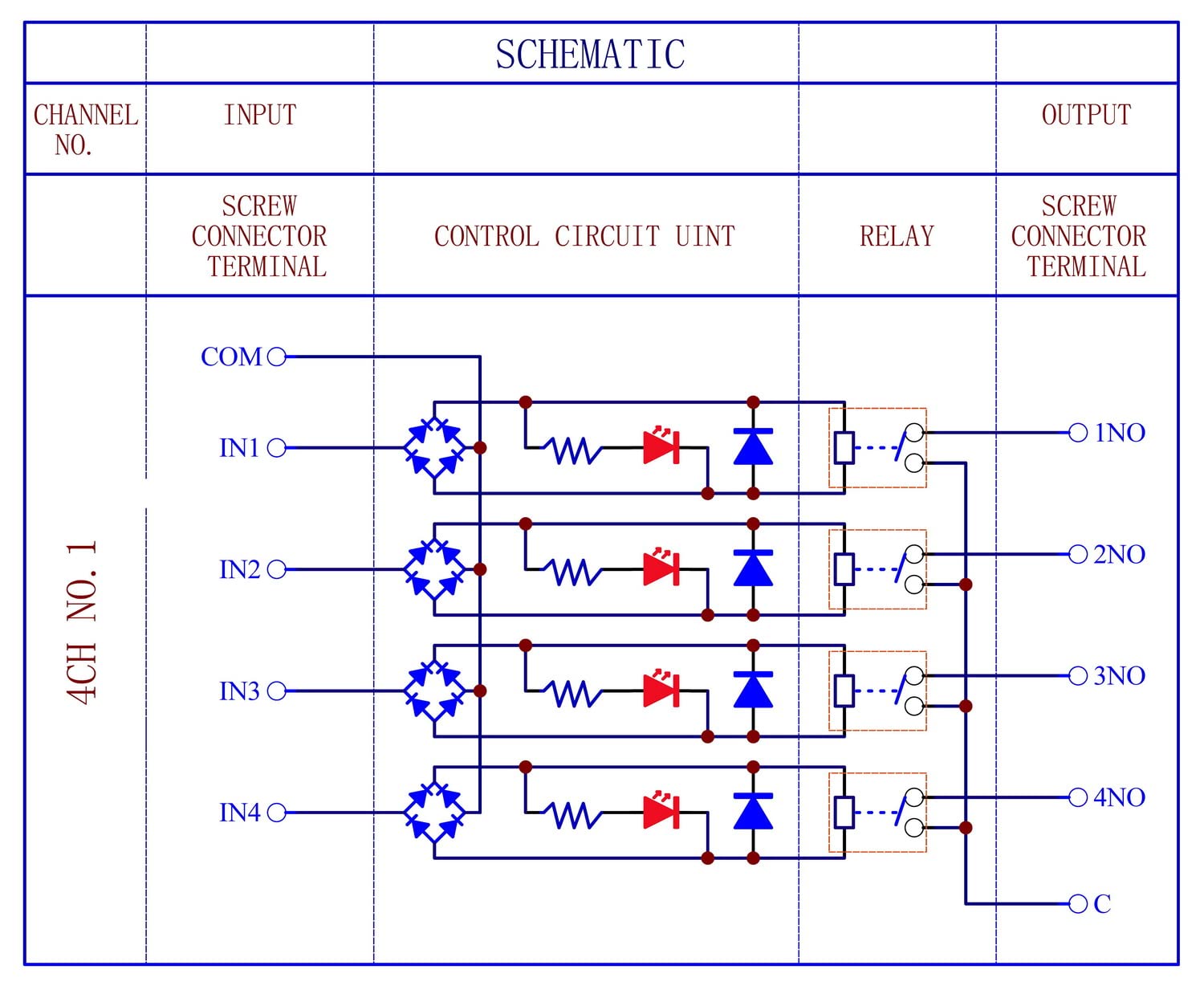

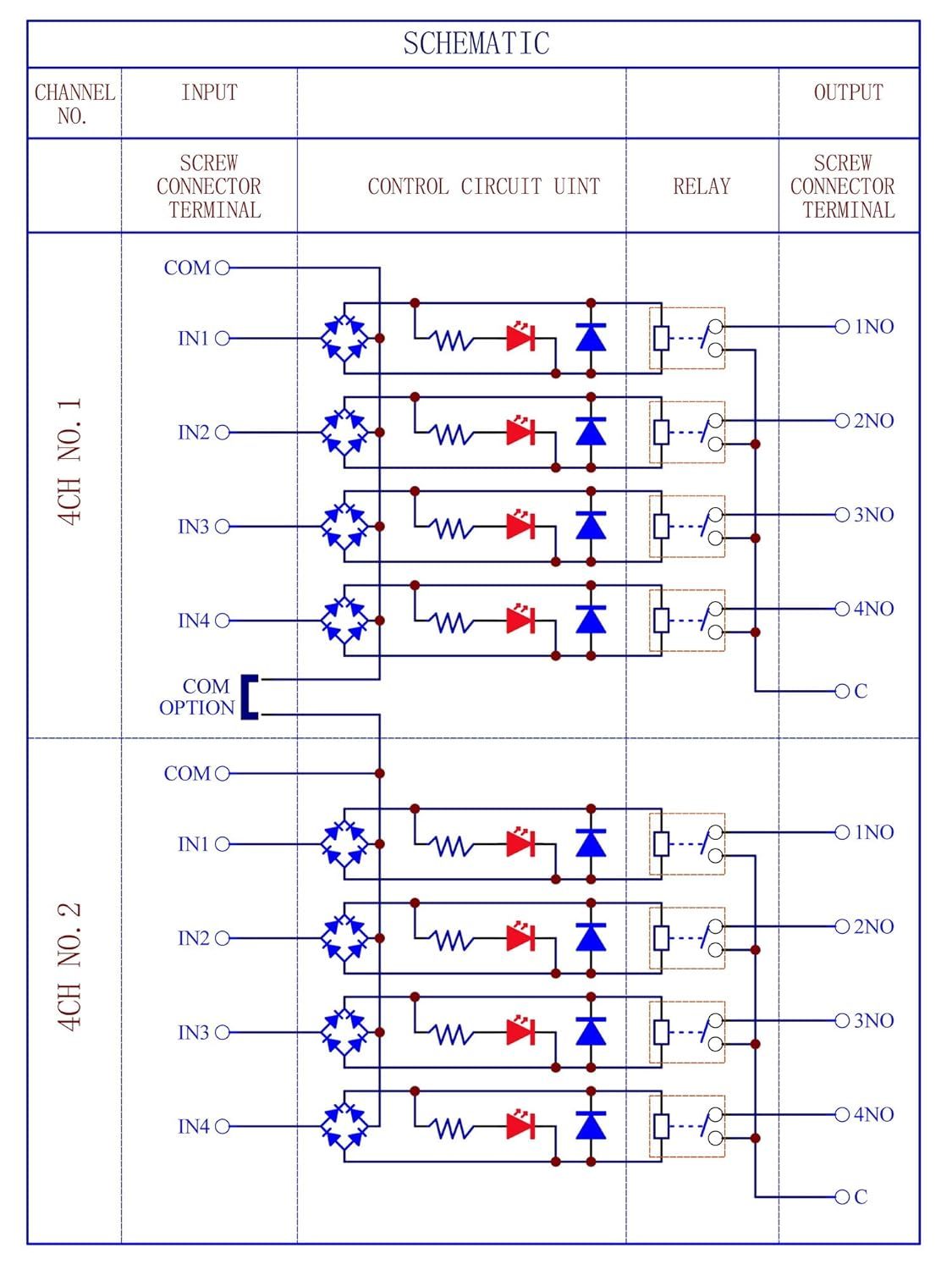

Users can flexibly configured control signal mode according to controllers output, can support DC Common Positive(for NPN / Sink output controllers), DC Common Negative(for PNP/Source output controllers) or AC 50/60 Hz Signal. LED indicator for each relay channel. Relay coil protection by means of a freewheeling diode.

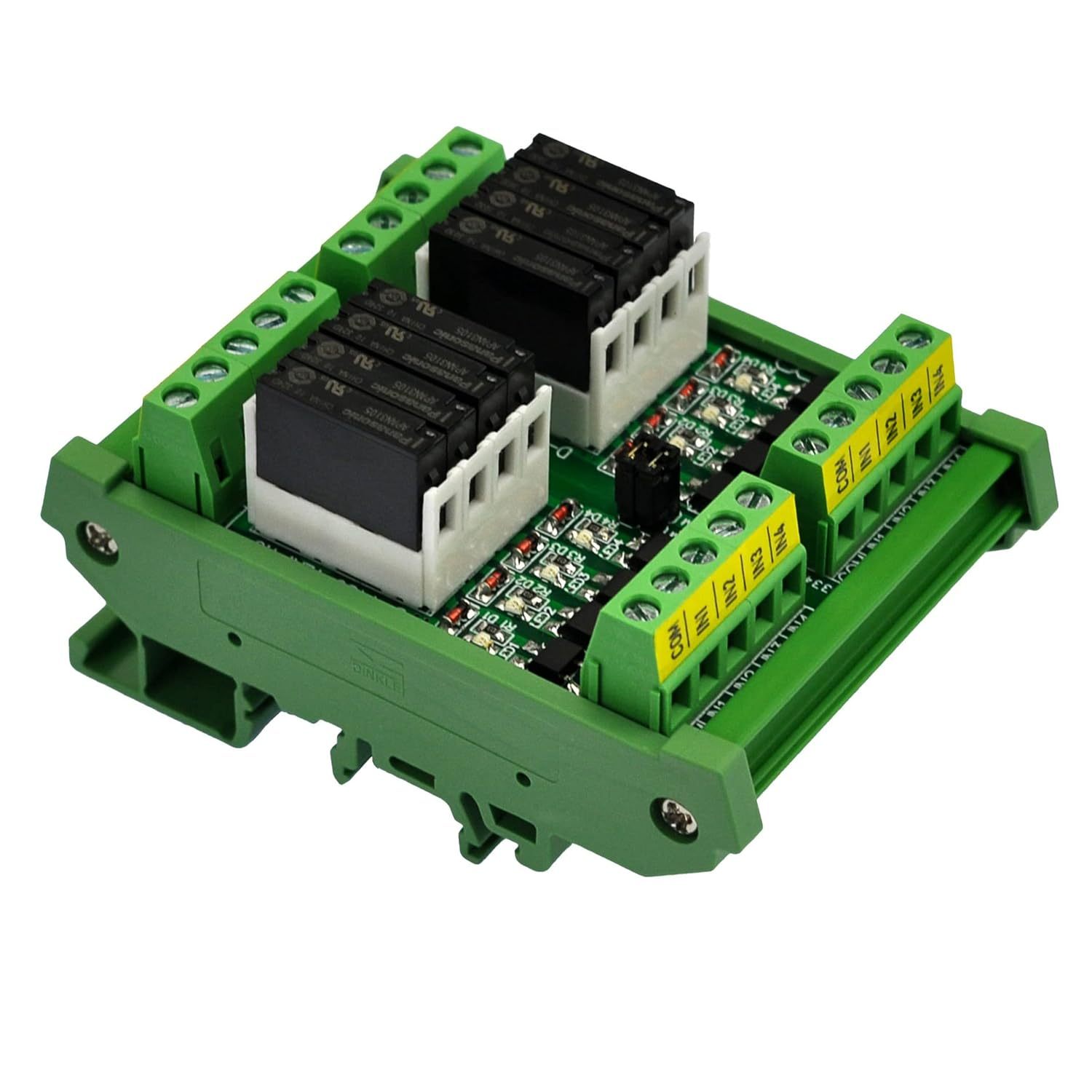

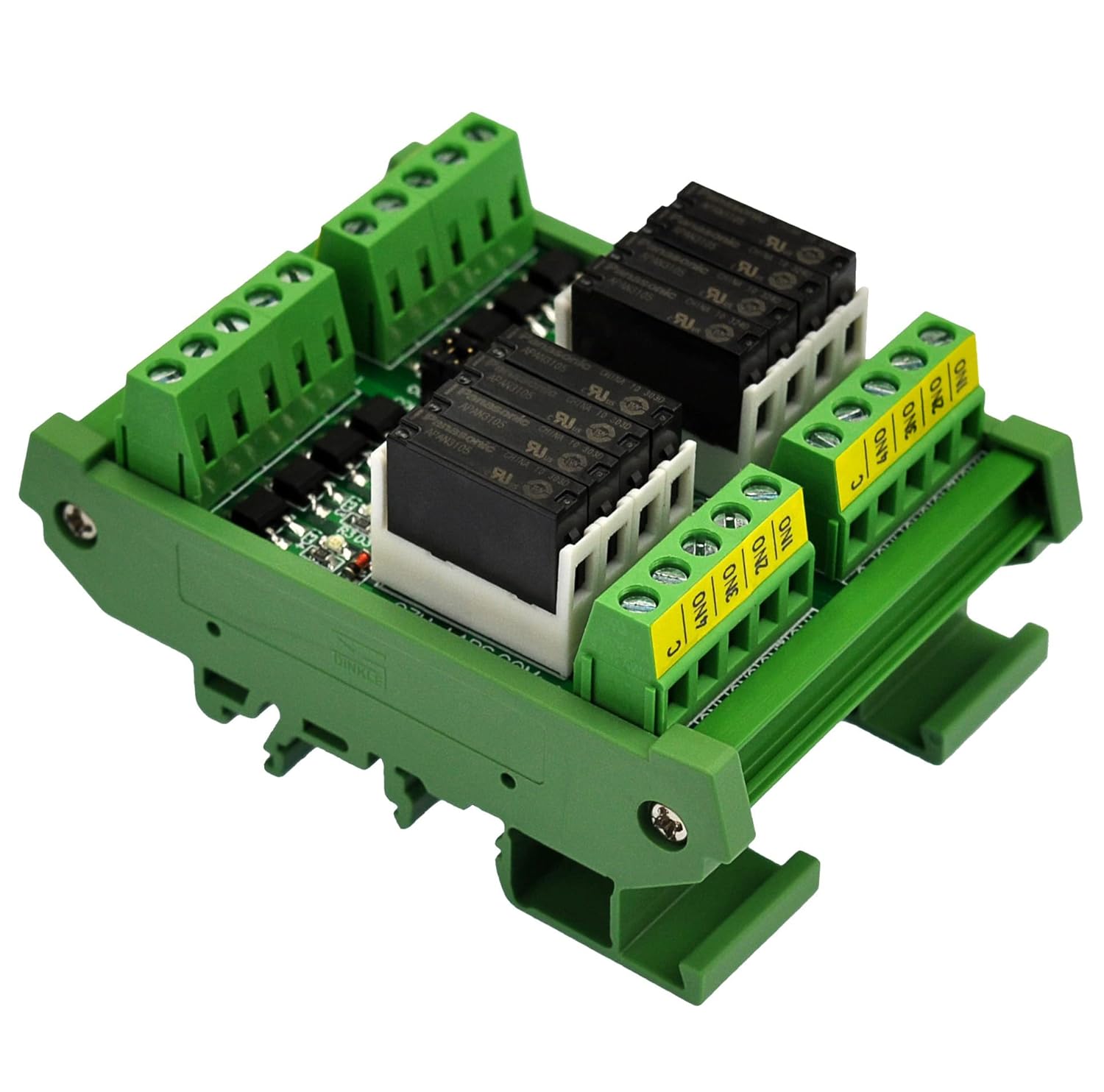

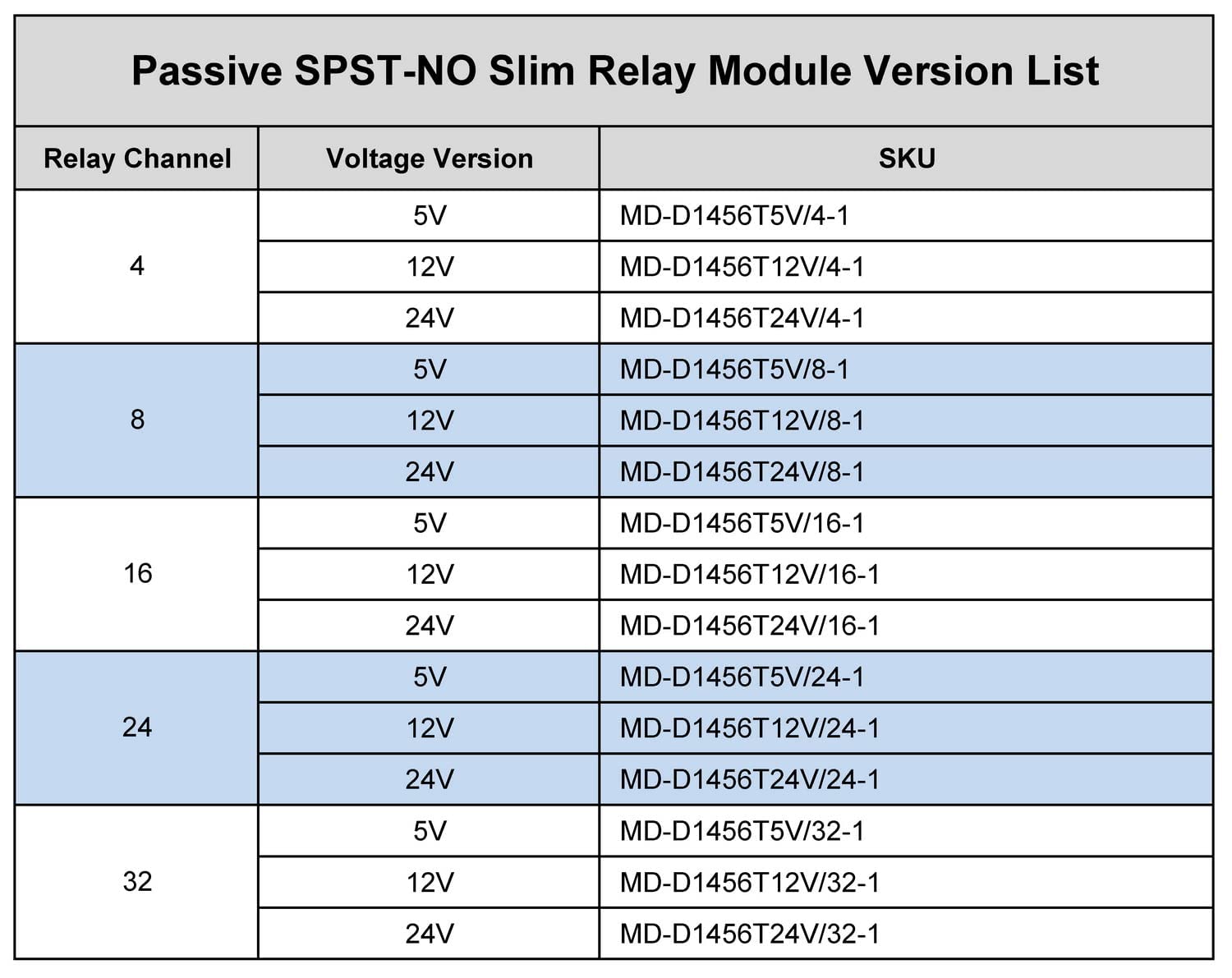

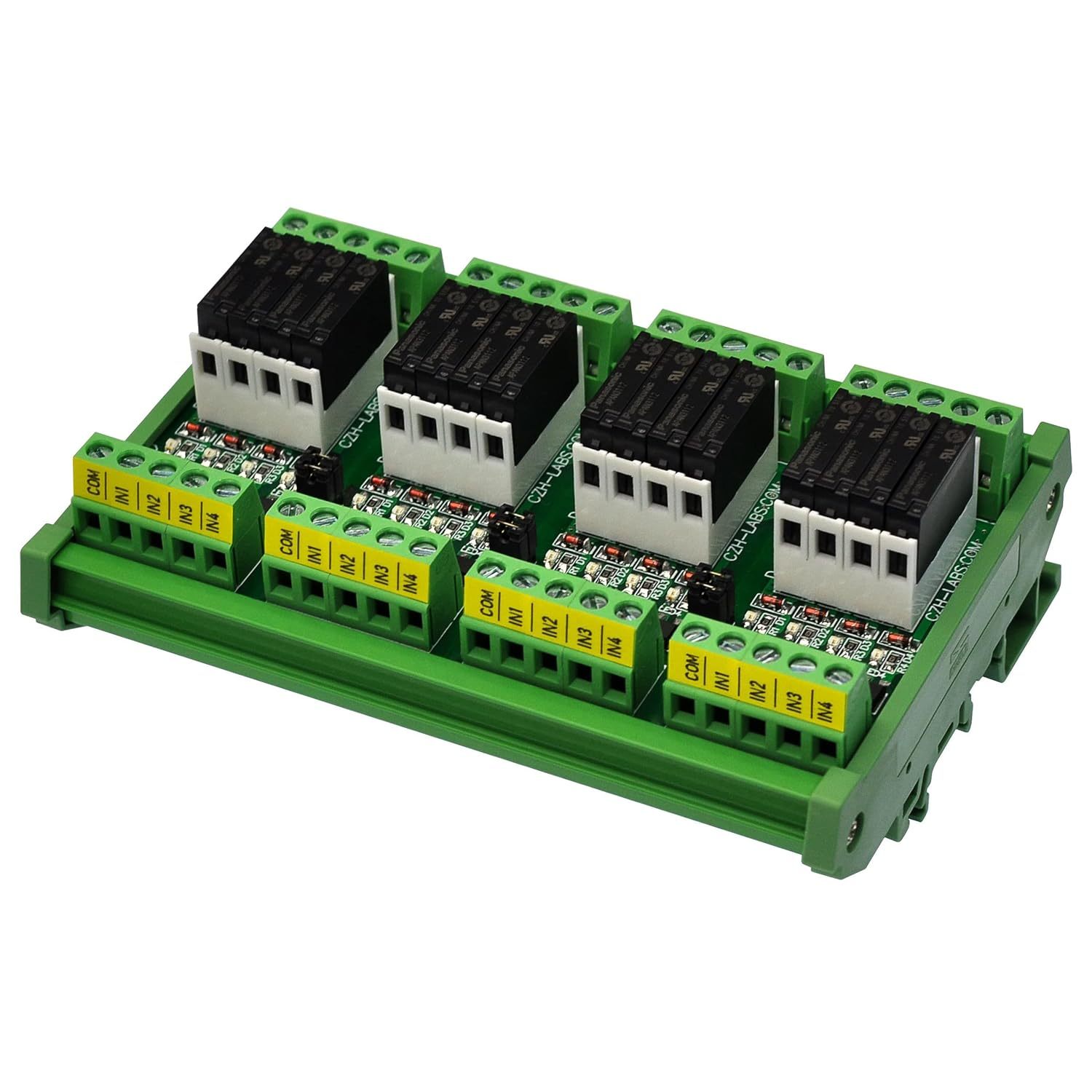

Operating voltage 5V / 12V / 24V versions selectable. Relay number 4 / 8 / 16 / 24 / 32 channels to selectable.
High quality terminal block: Pitch 5.0mm/0.197", Wire range 28AWG ~ 12AWG / 2.5mm square, Strip length 7mm. Screws - M2.5,steel,Cr3+ Zn plated. Pin header and Cage - Brass.

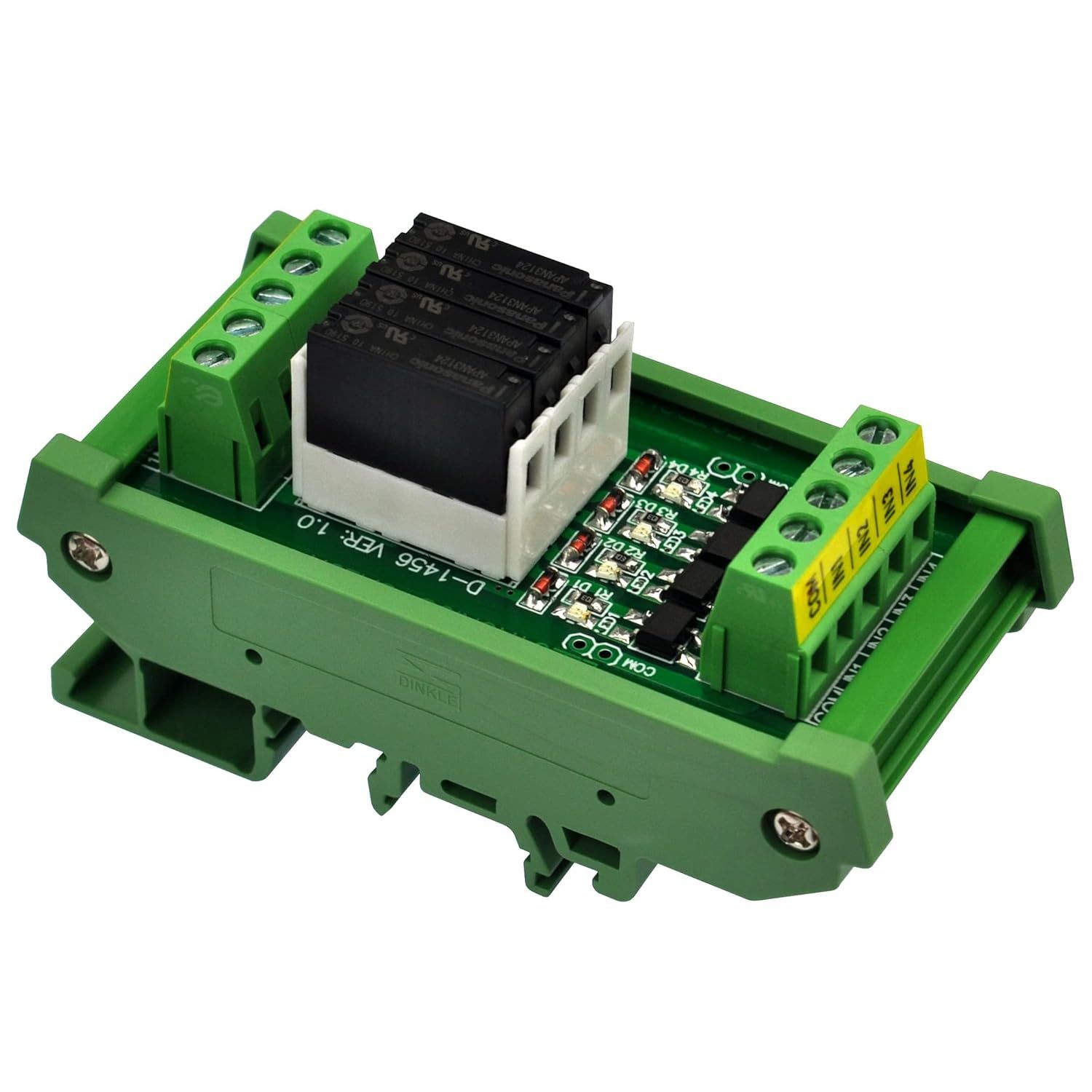

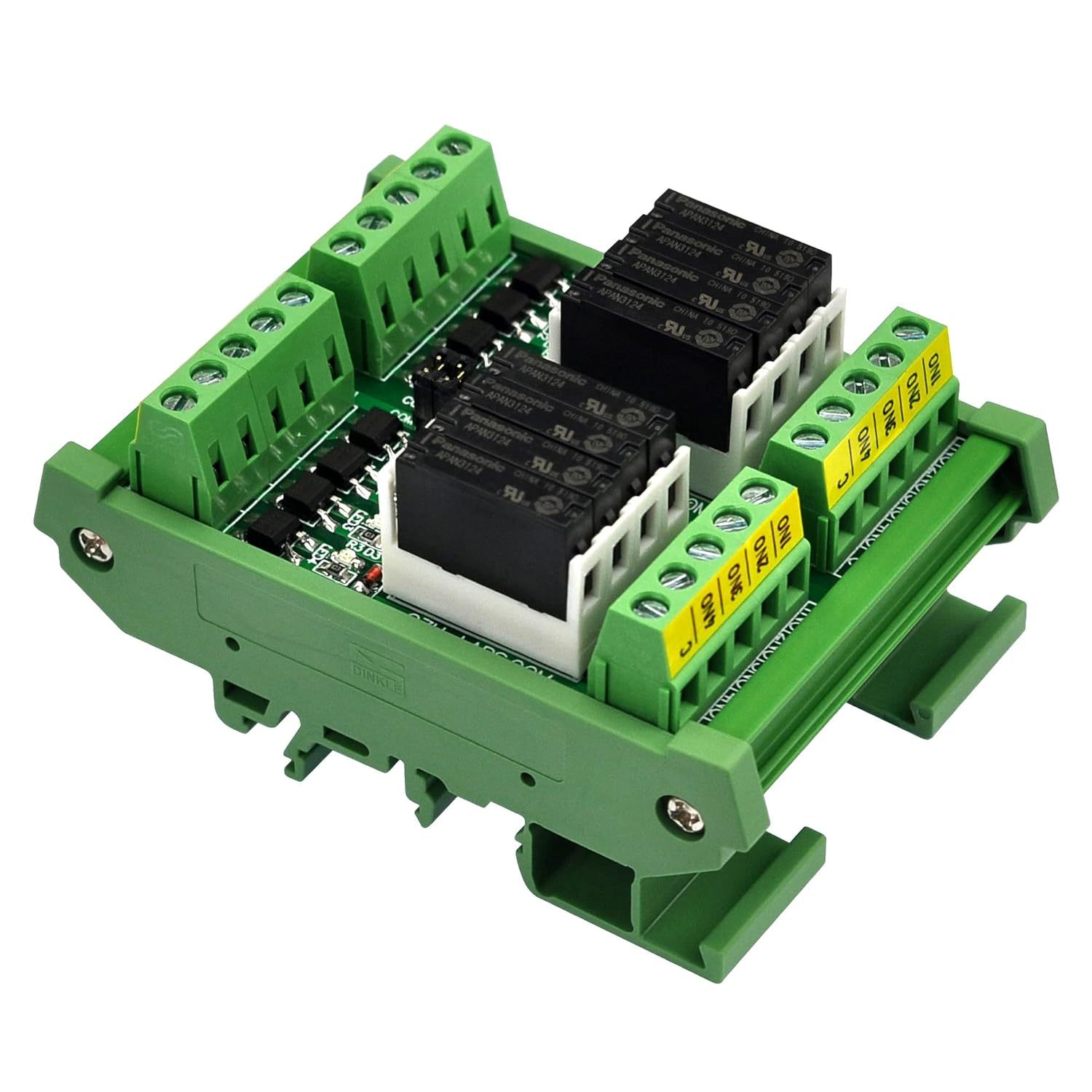

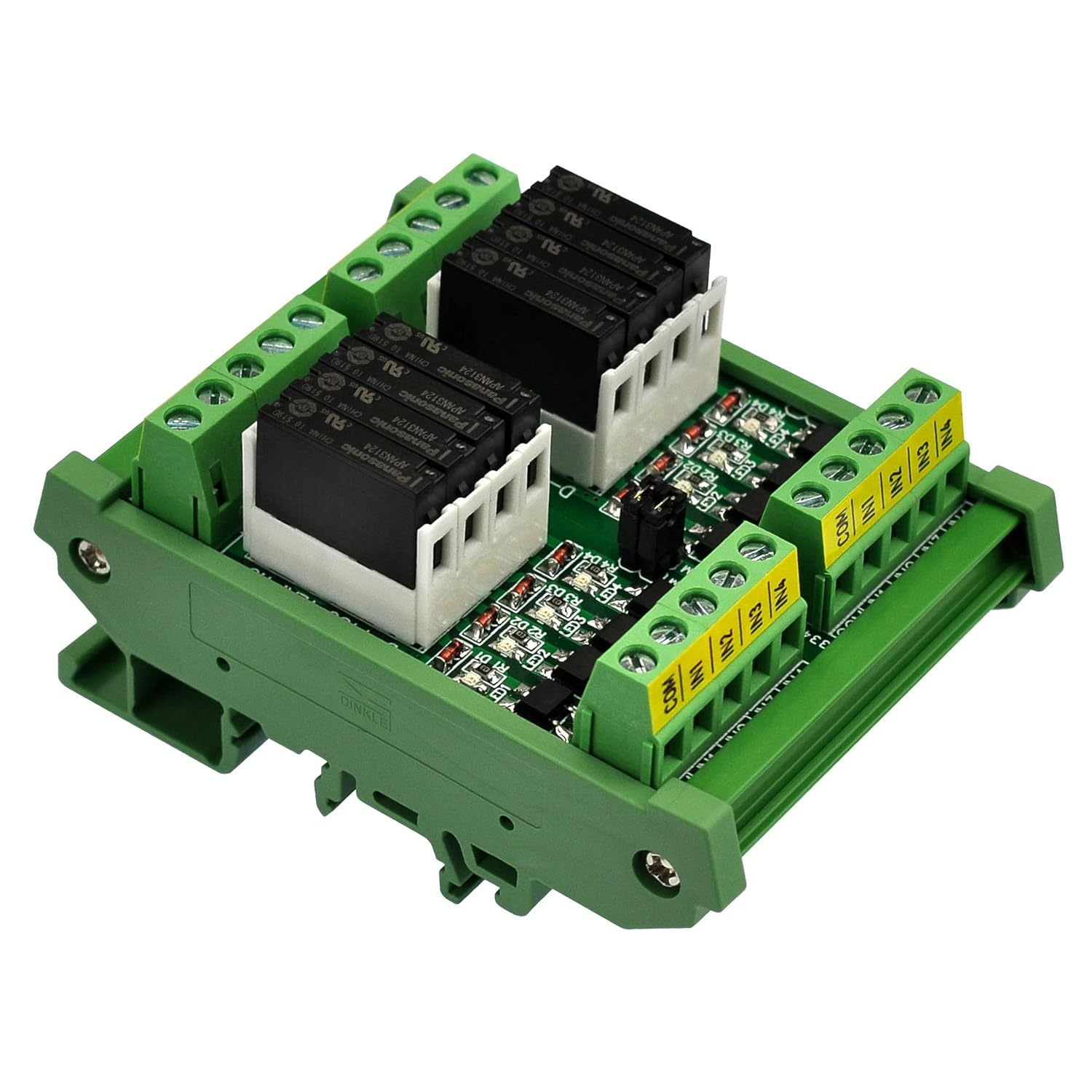

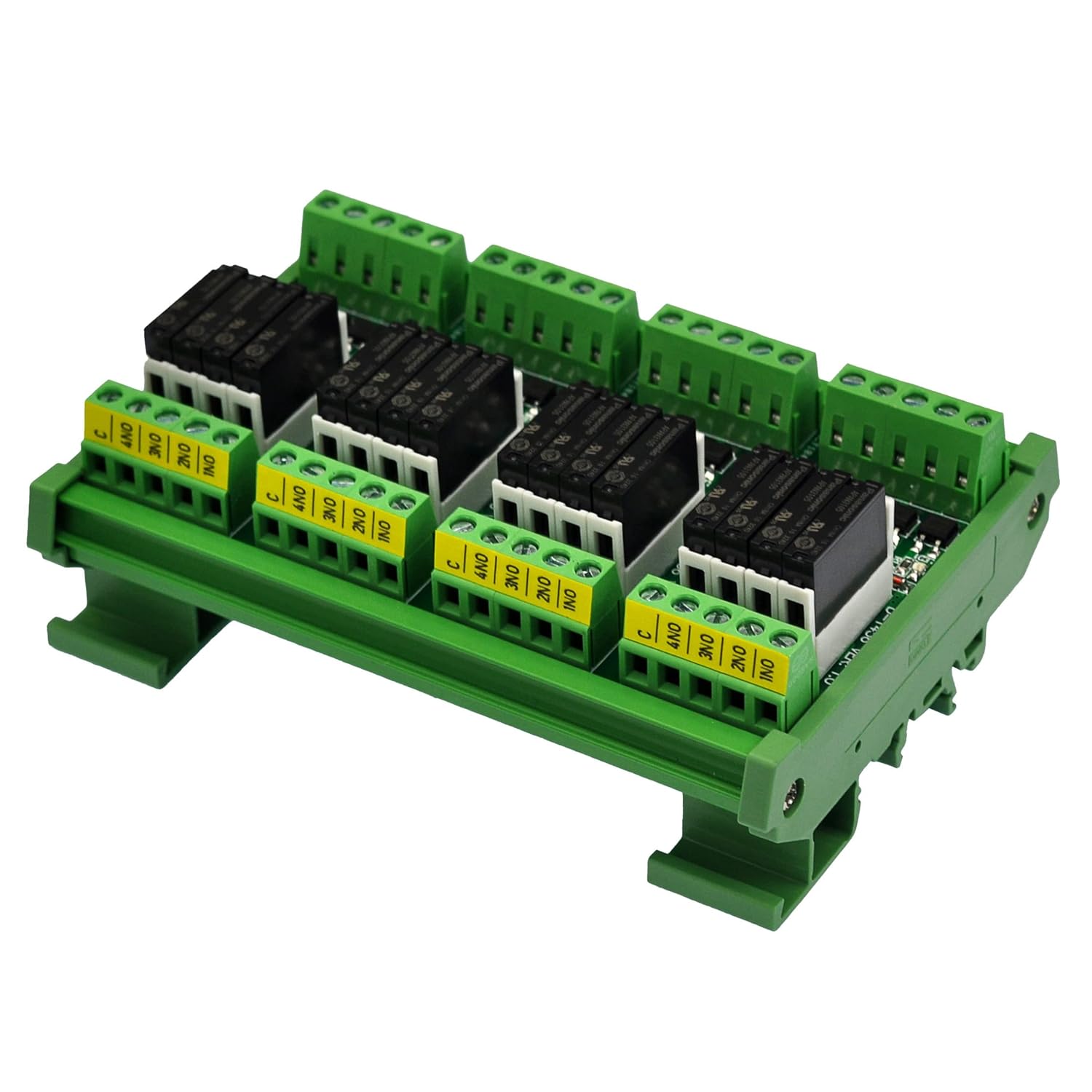

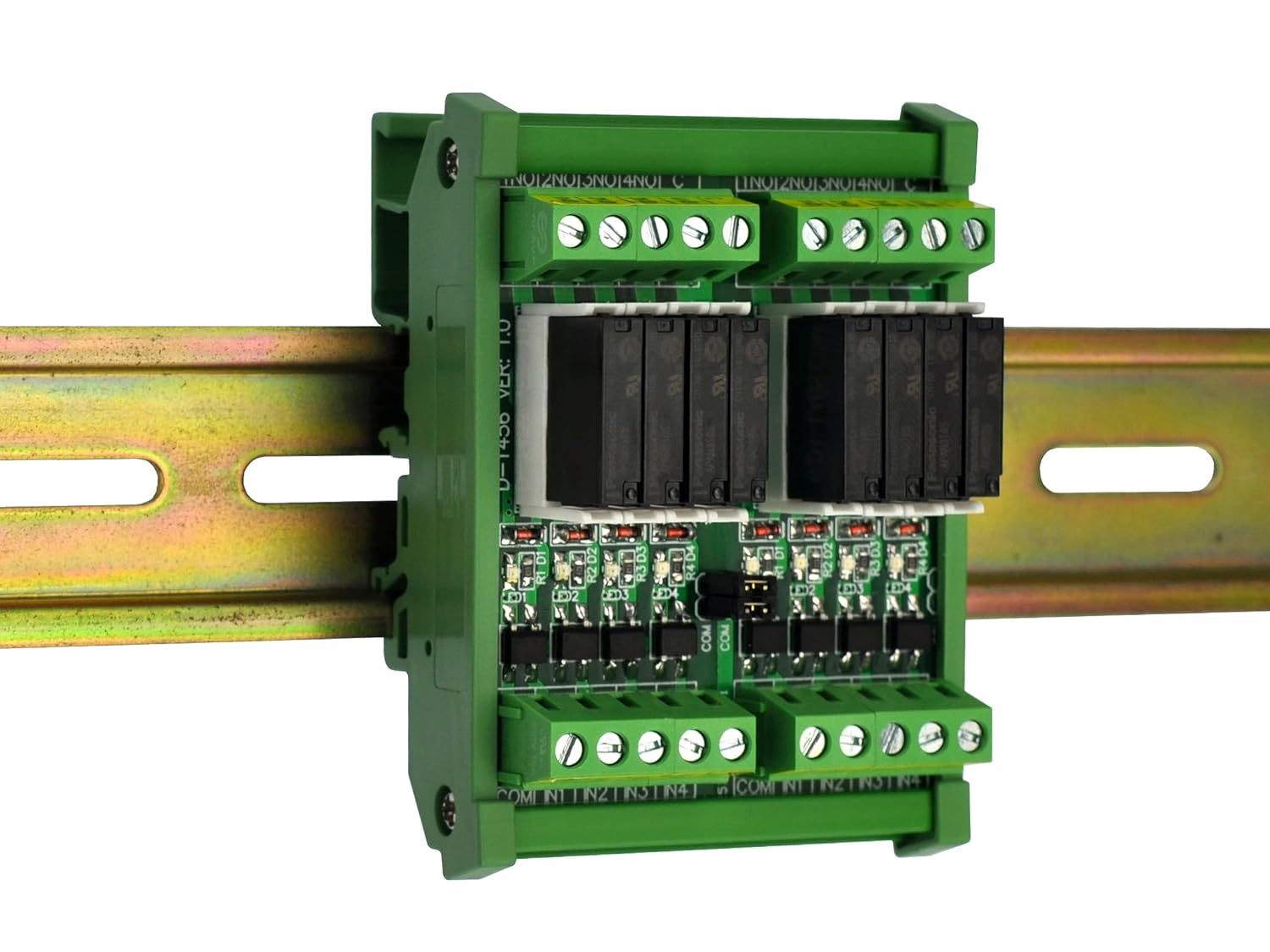

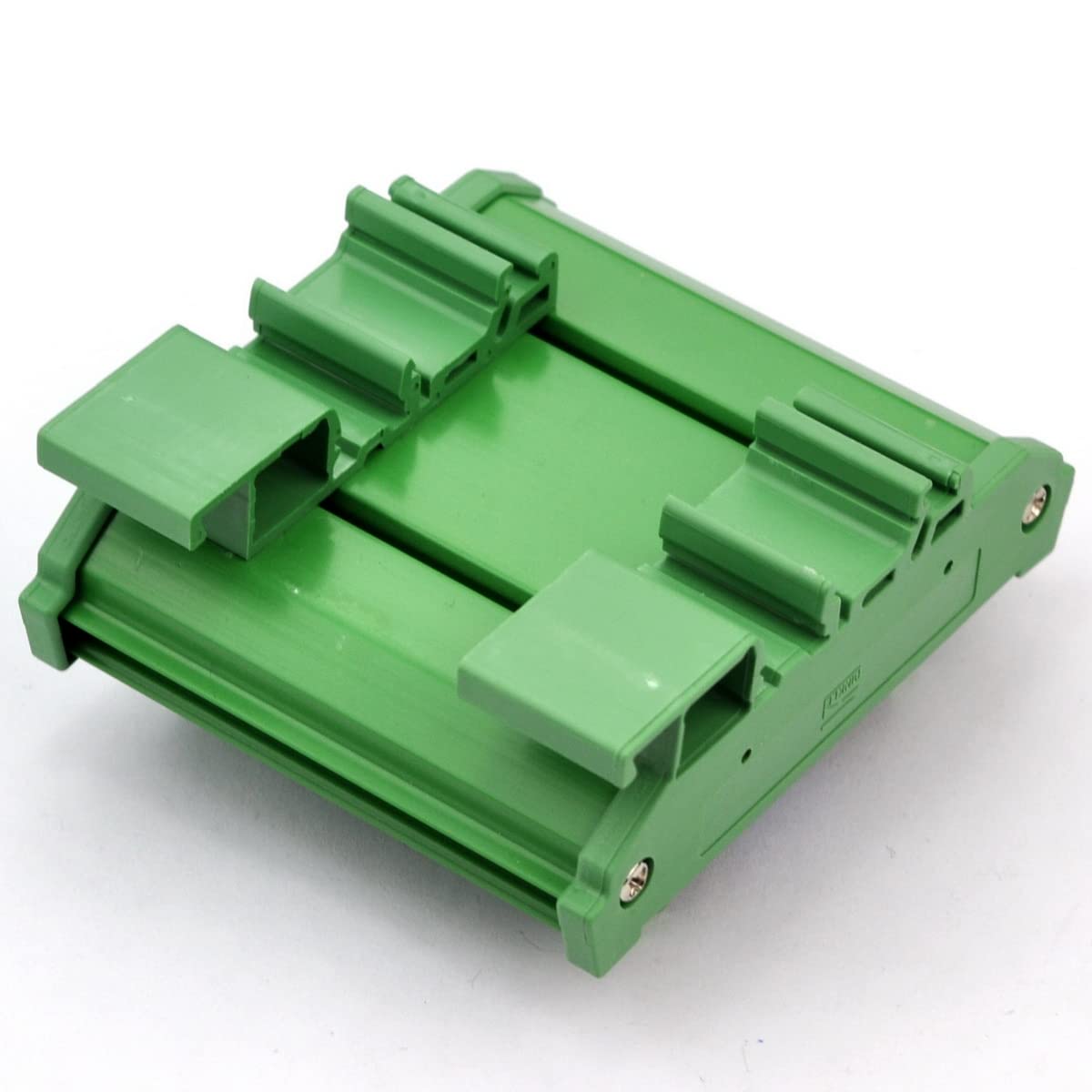

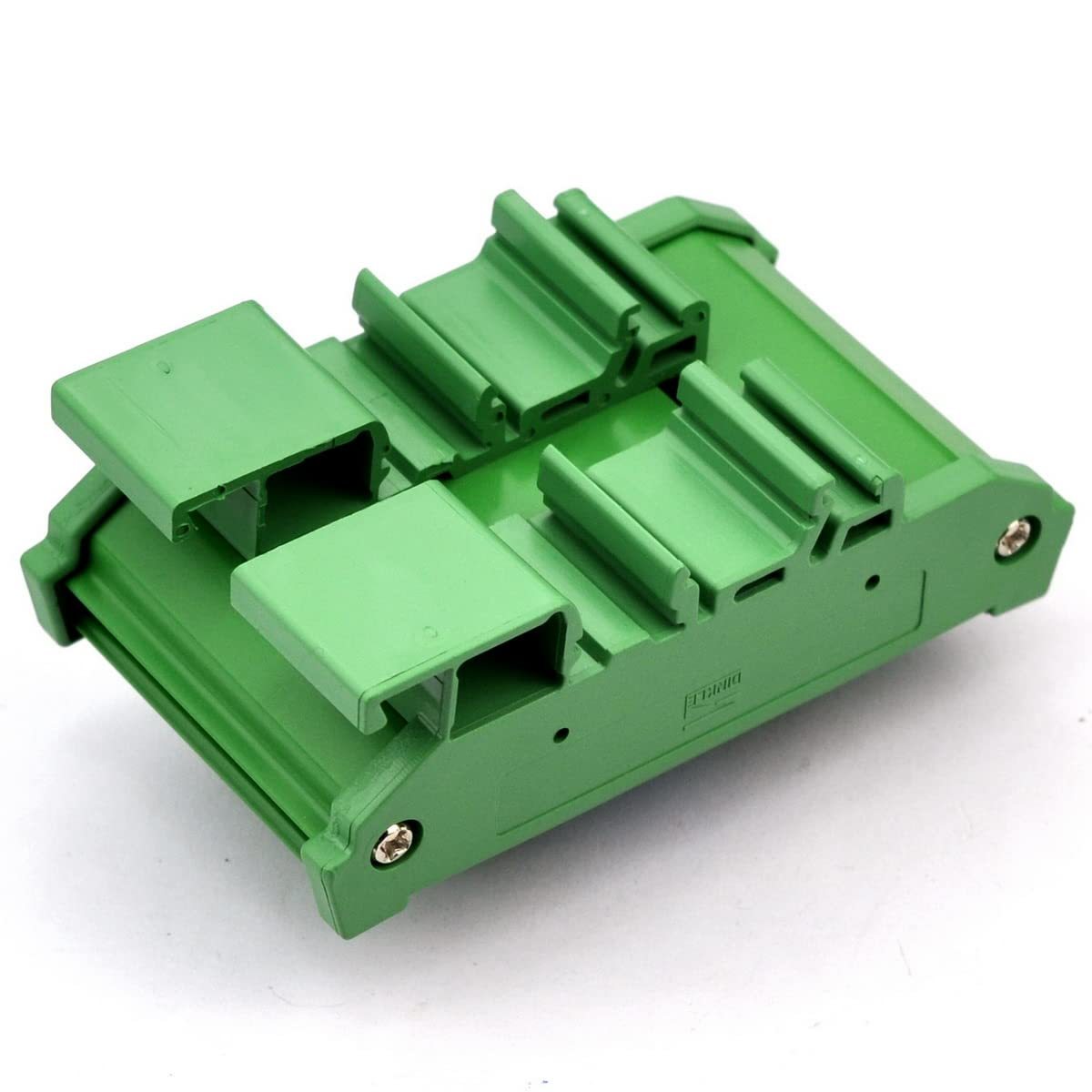

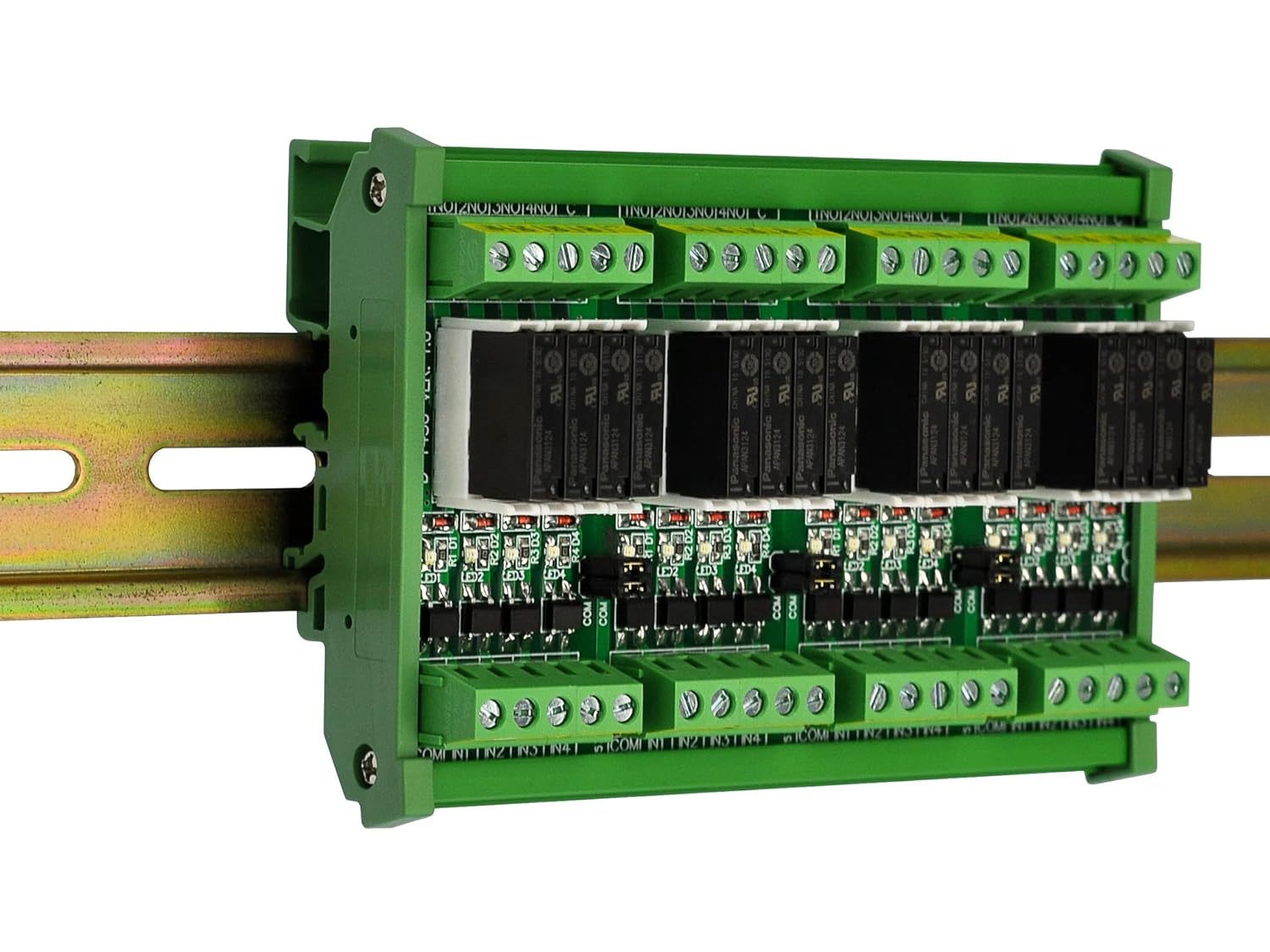

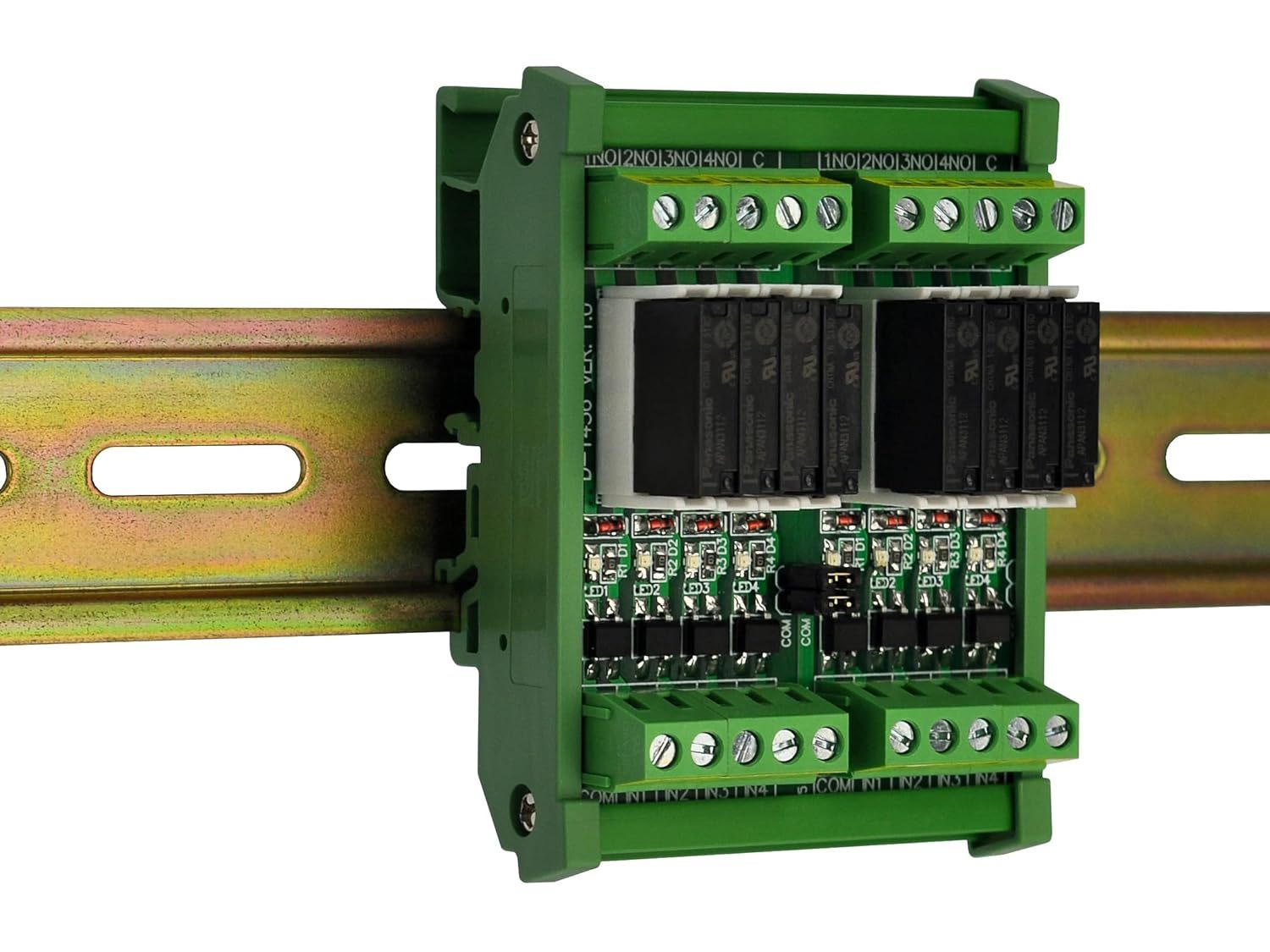

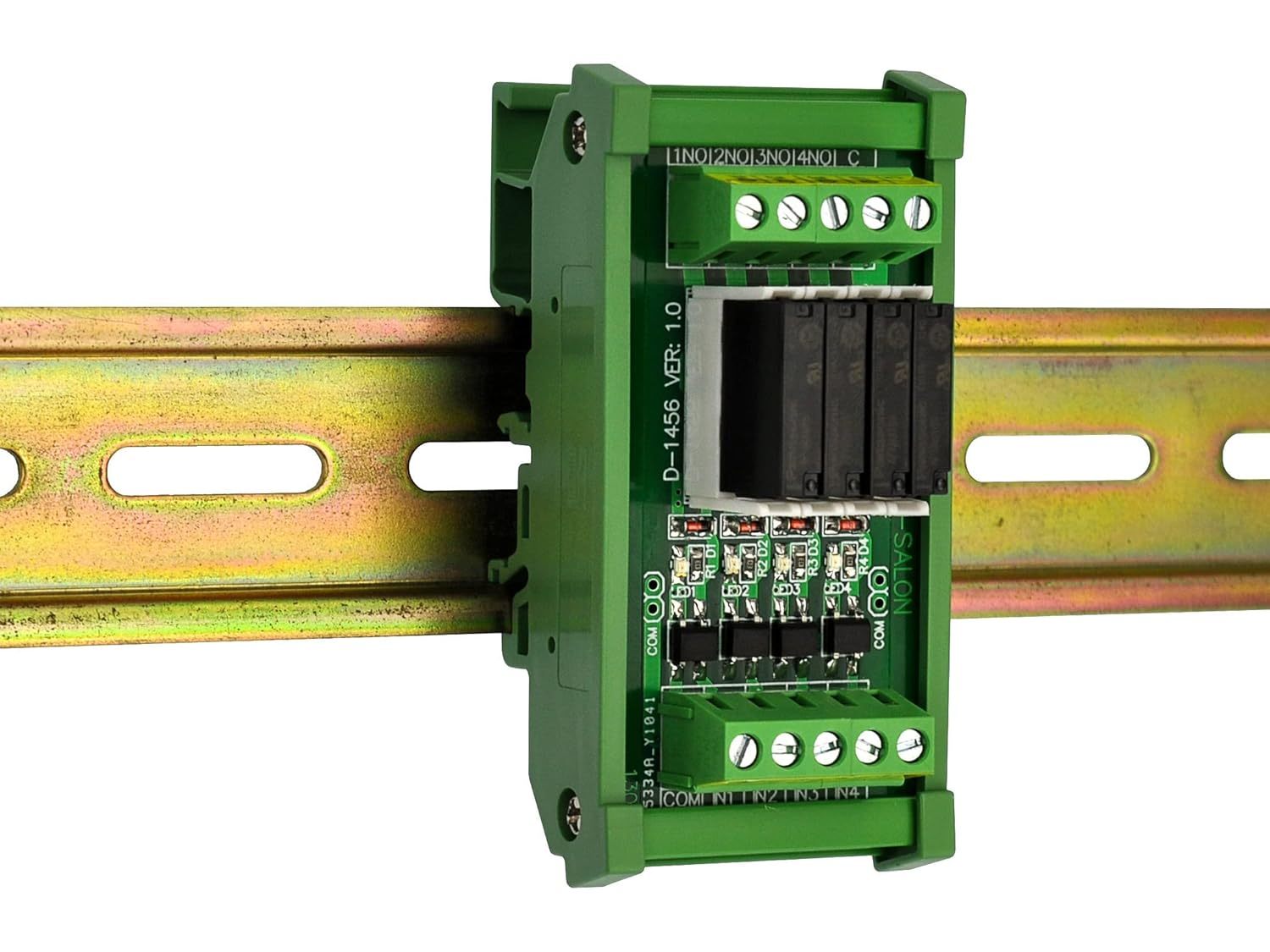

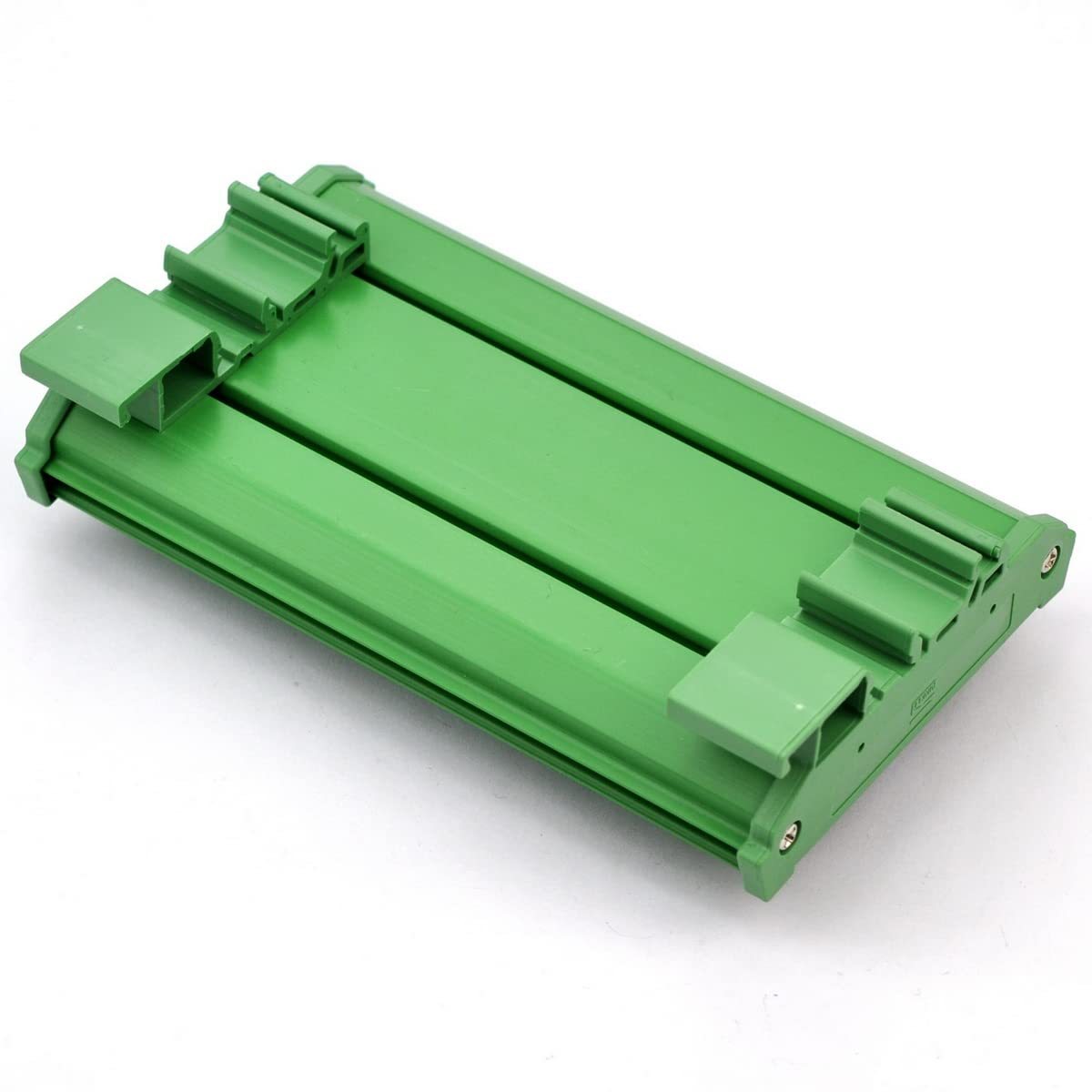

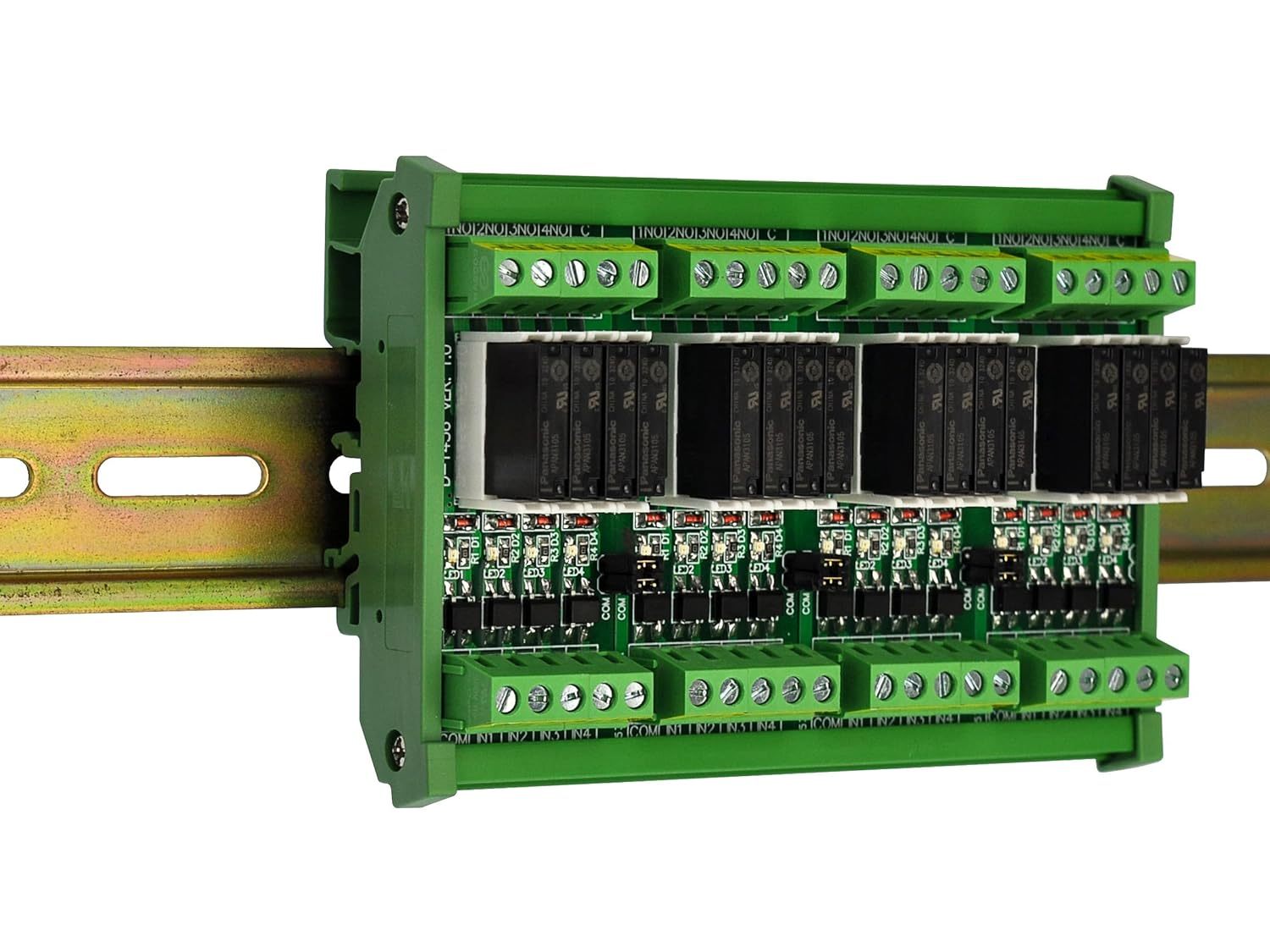

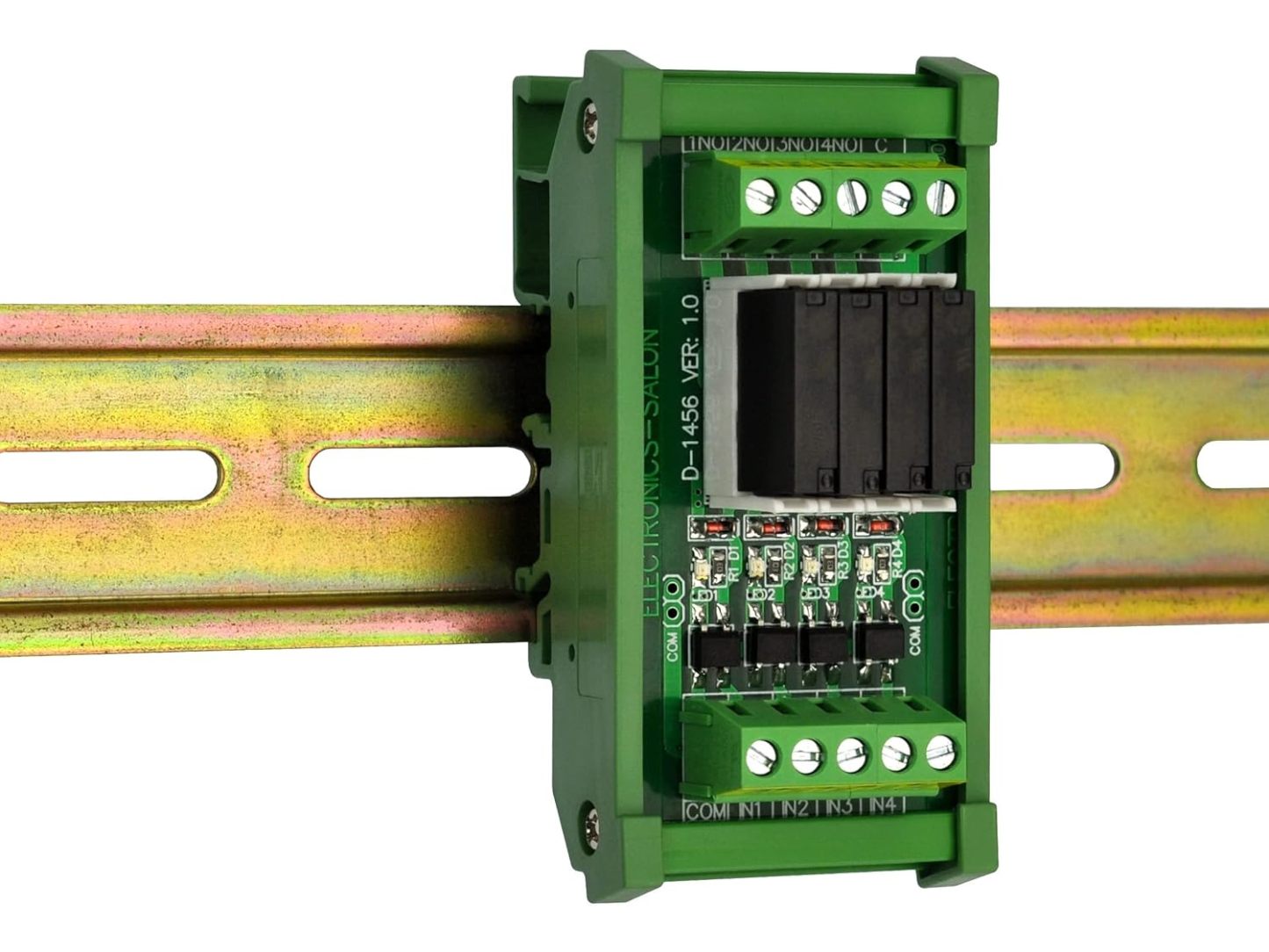

High quality DIN rail mount carrier, fireproof nylon material (not China low quality carrier), can support width 35mm / 32mm / 15mm rail. FR-4 fiber glass dual layers PCB.
