About this item

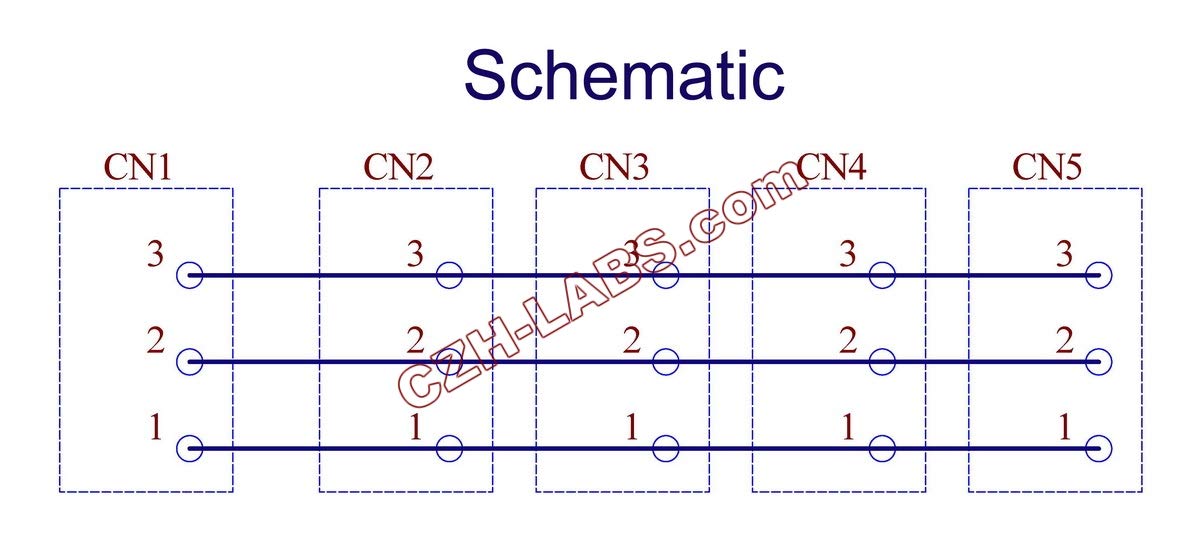

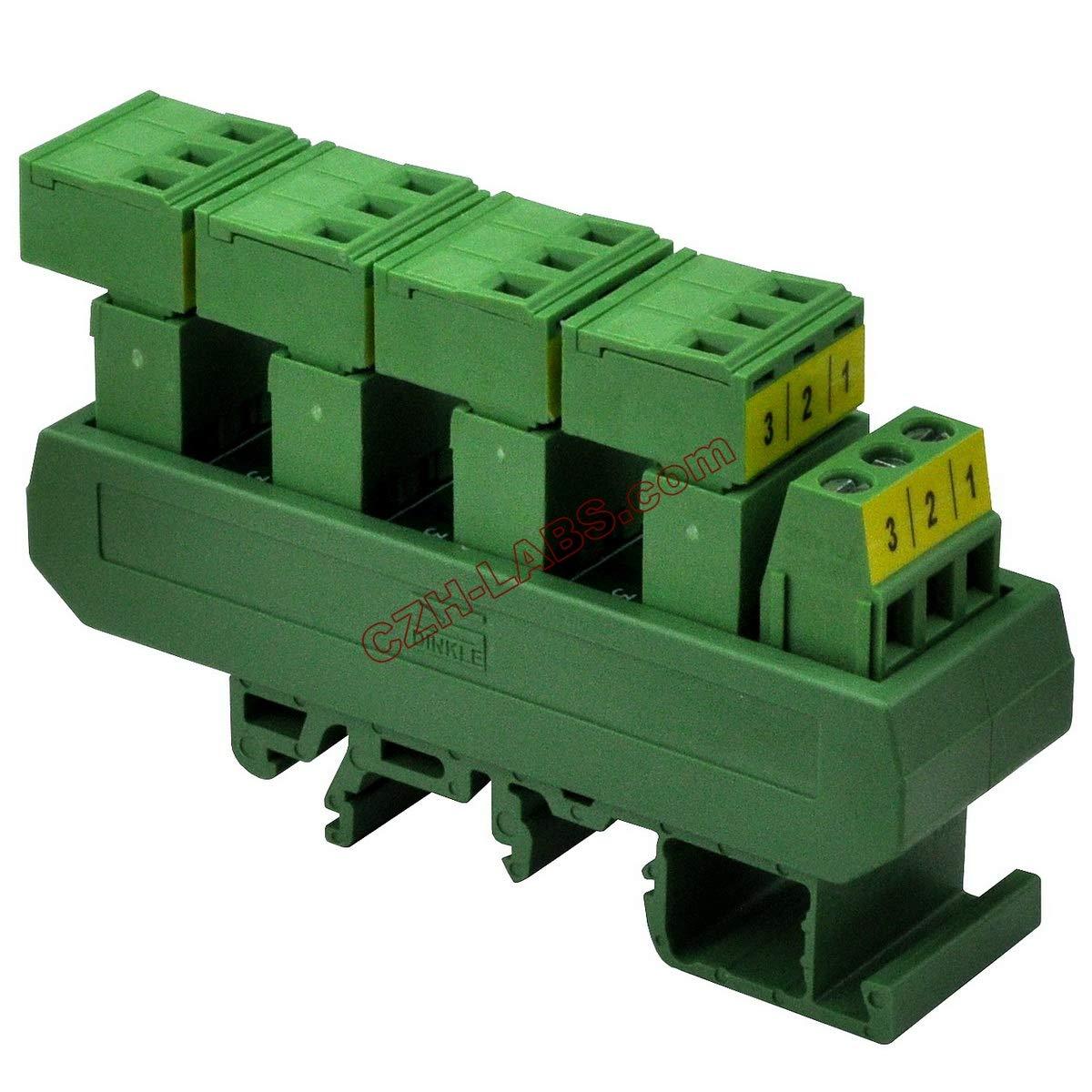

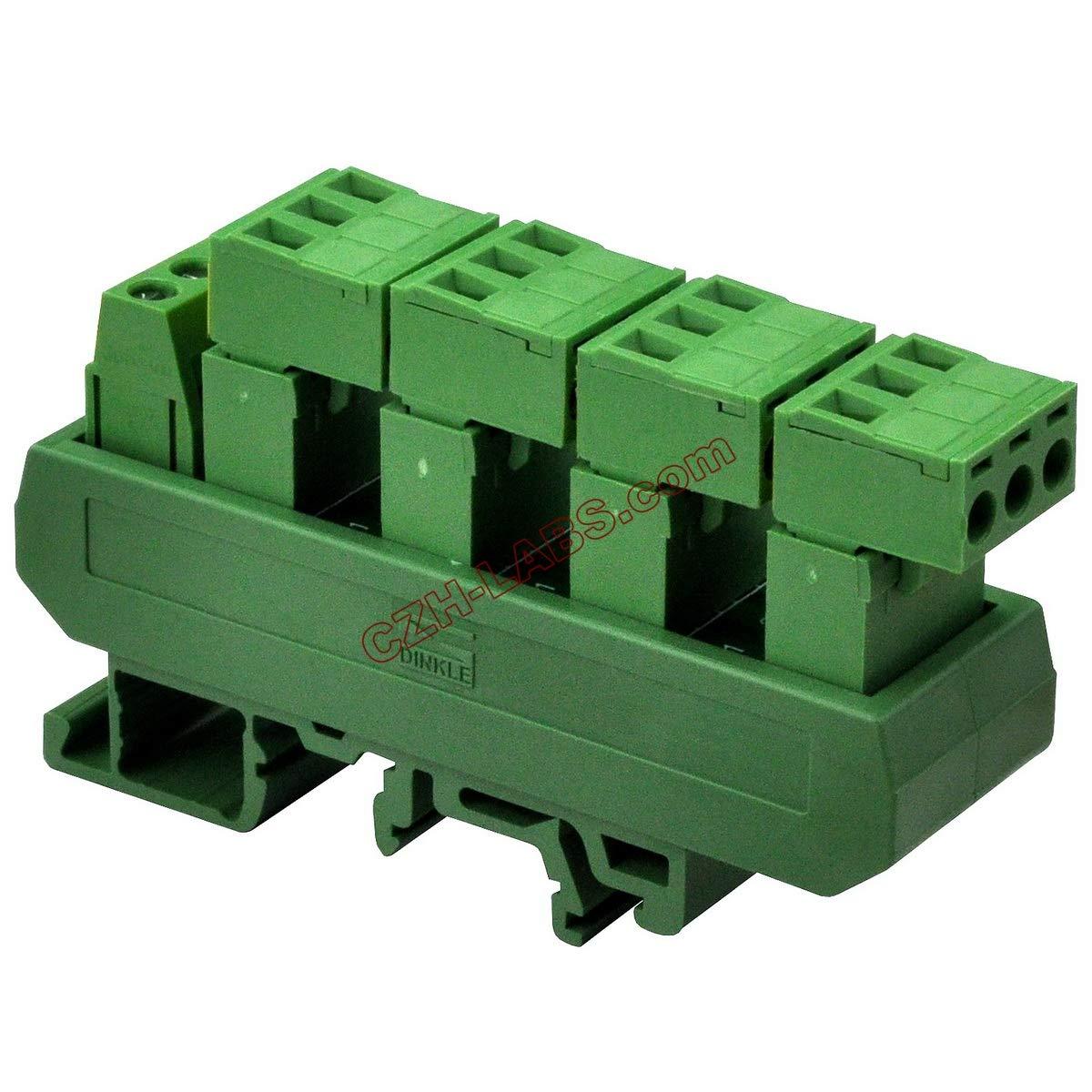

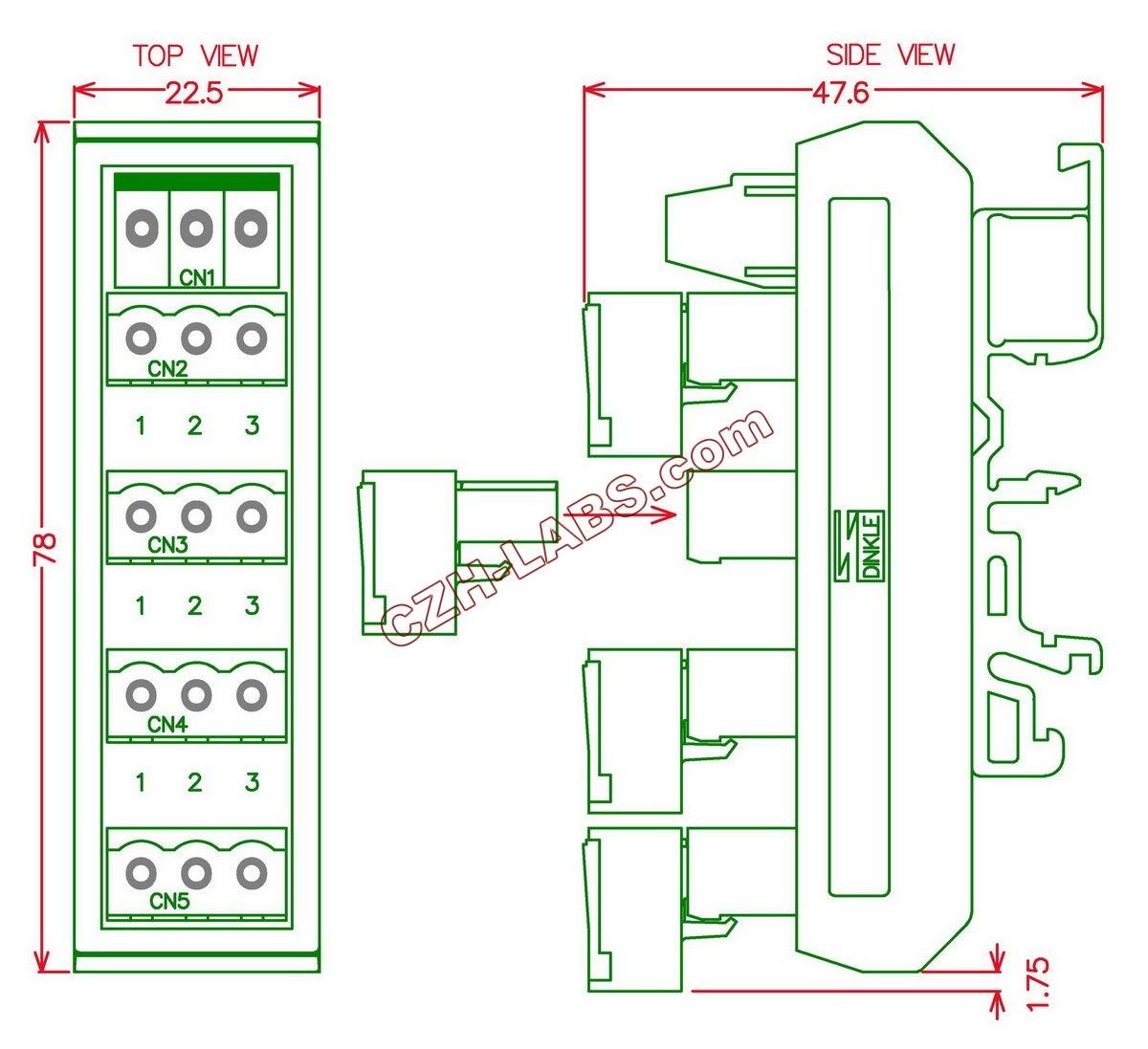

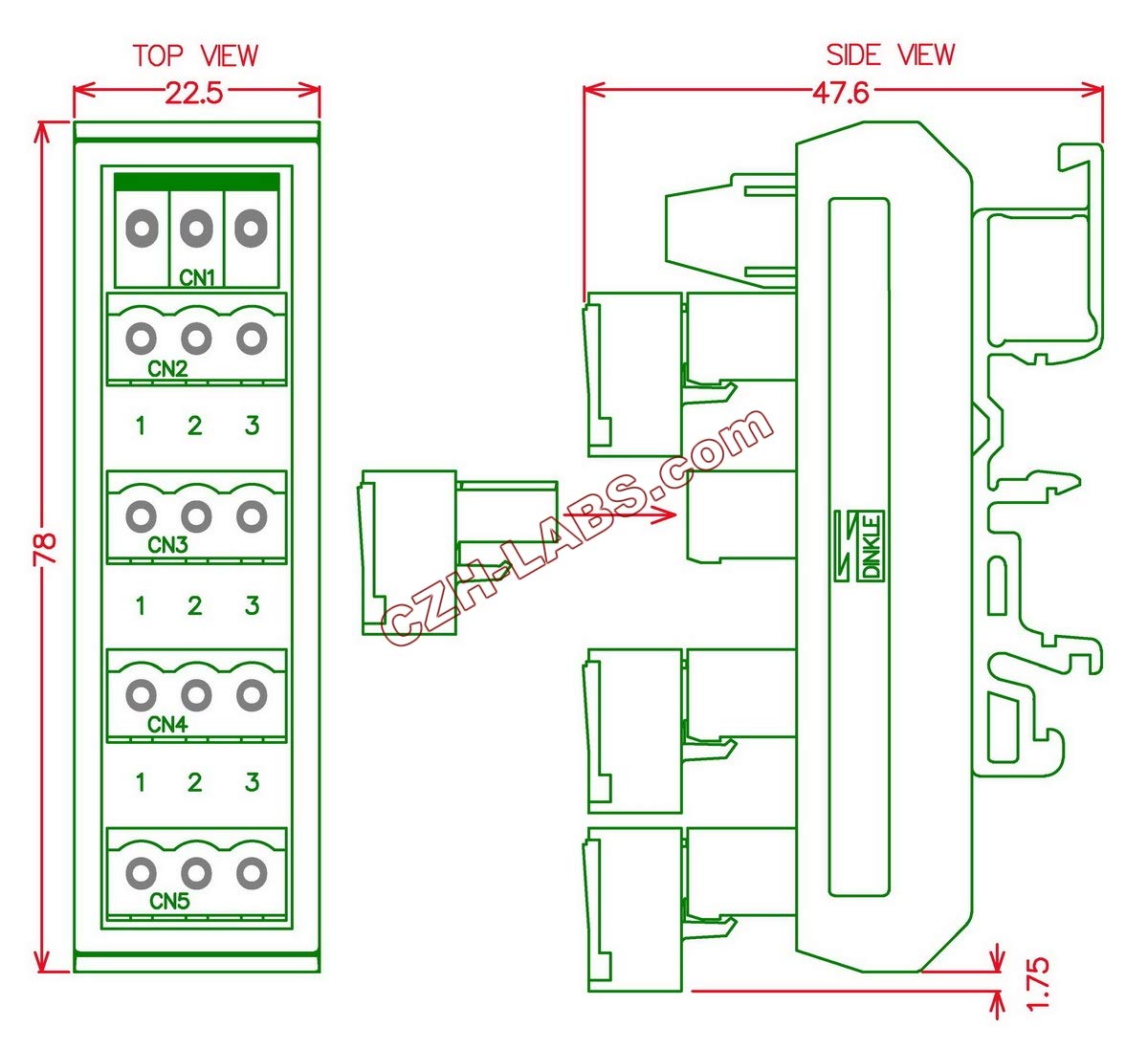

• Slim DIN Rail Mount 10A/300V 5x3 Position Pluggable Screw Terminal Block Distribution Module.

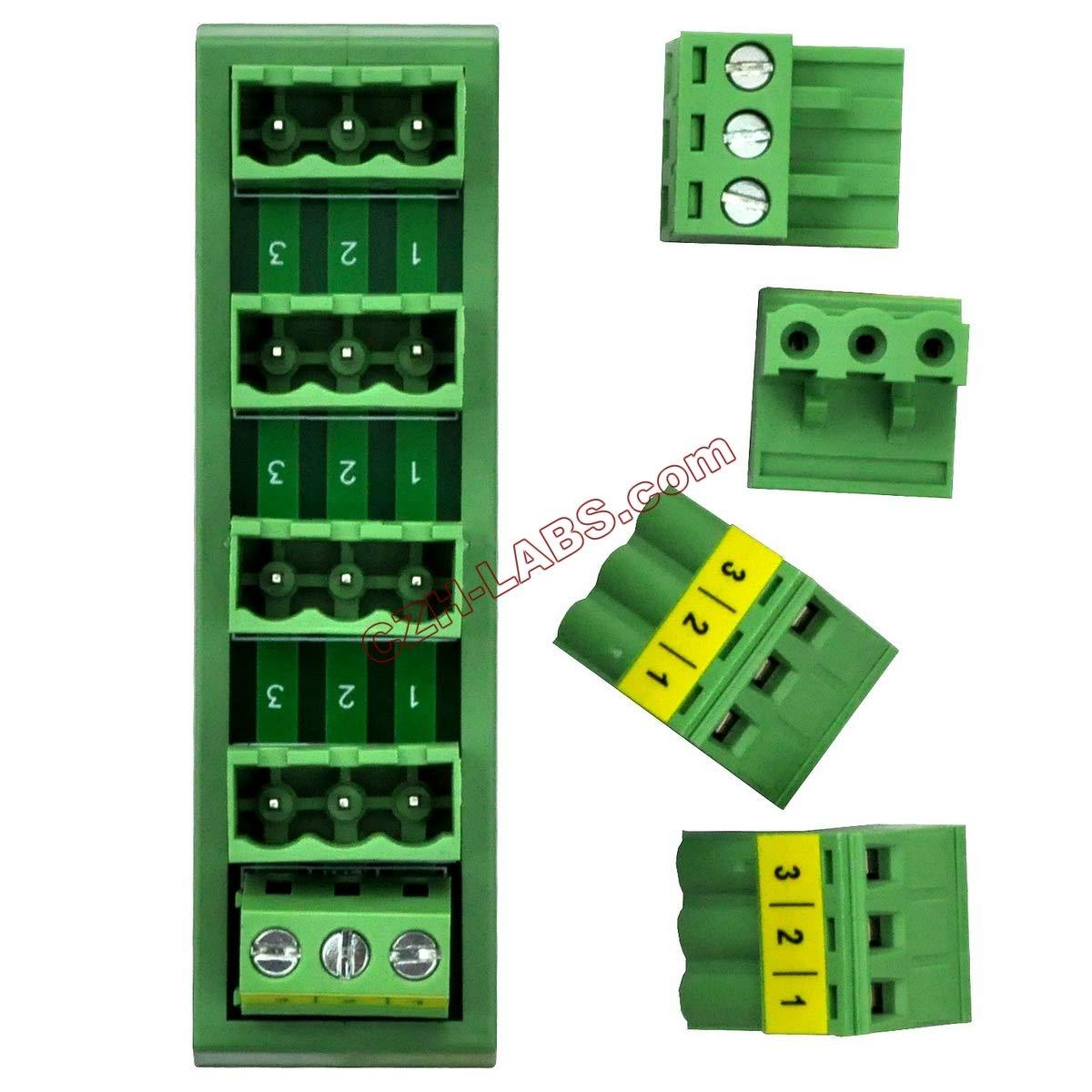

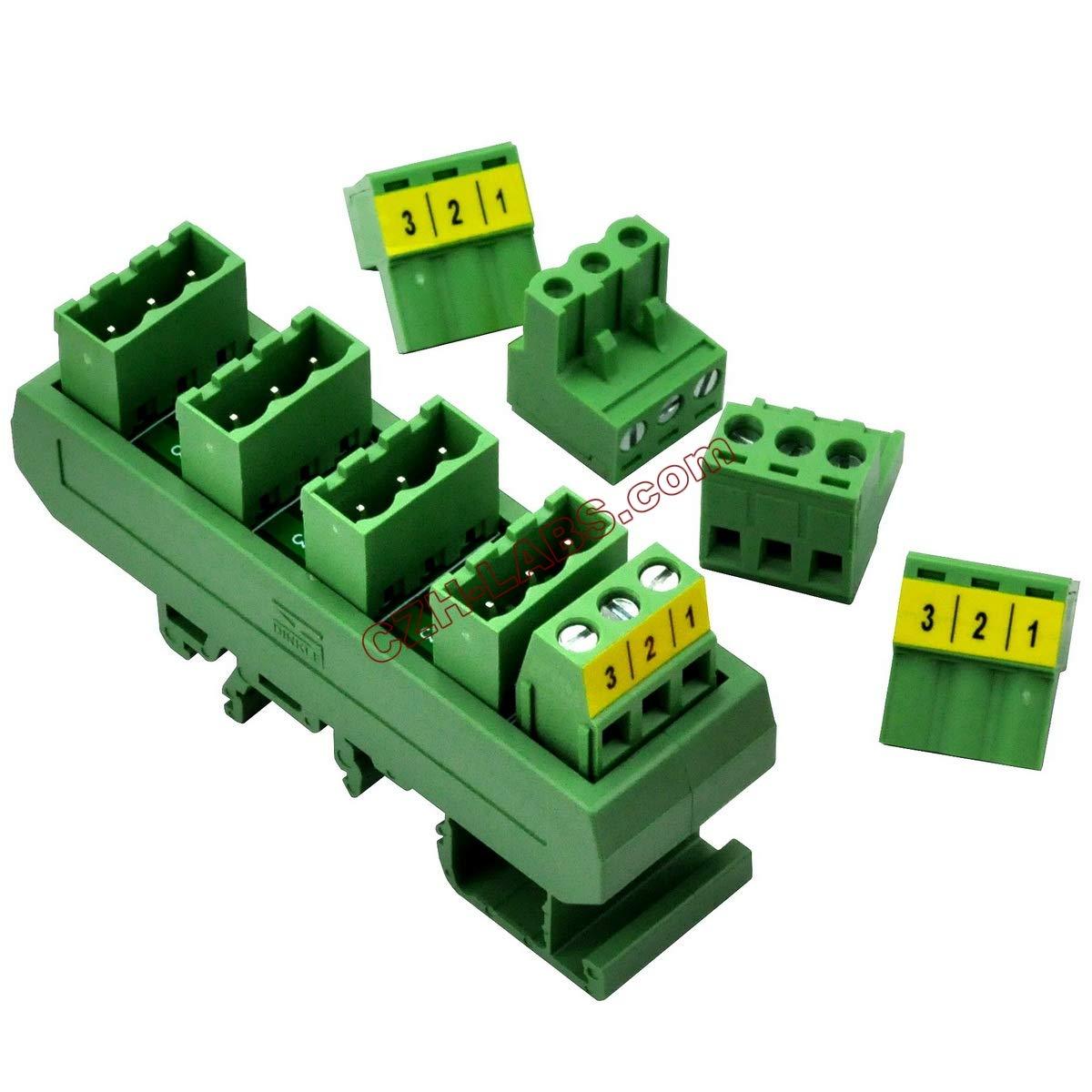

• Pluggable Terminal Block: 4x 3 Position pluggable screw terminal block, top wire connects, pitch 5.08mm/0.2", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass.
• Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 10Amp(per position).
• PCB mount Terminal Block: 1x 3 Position PCB mount screw terminal block, pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 16Amp(per position).

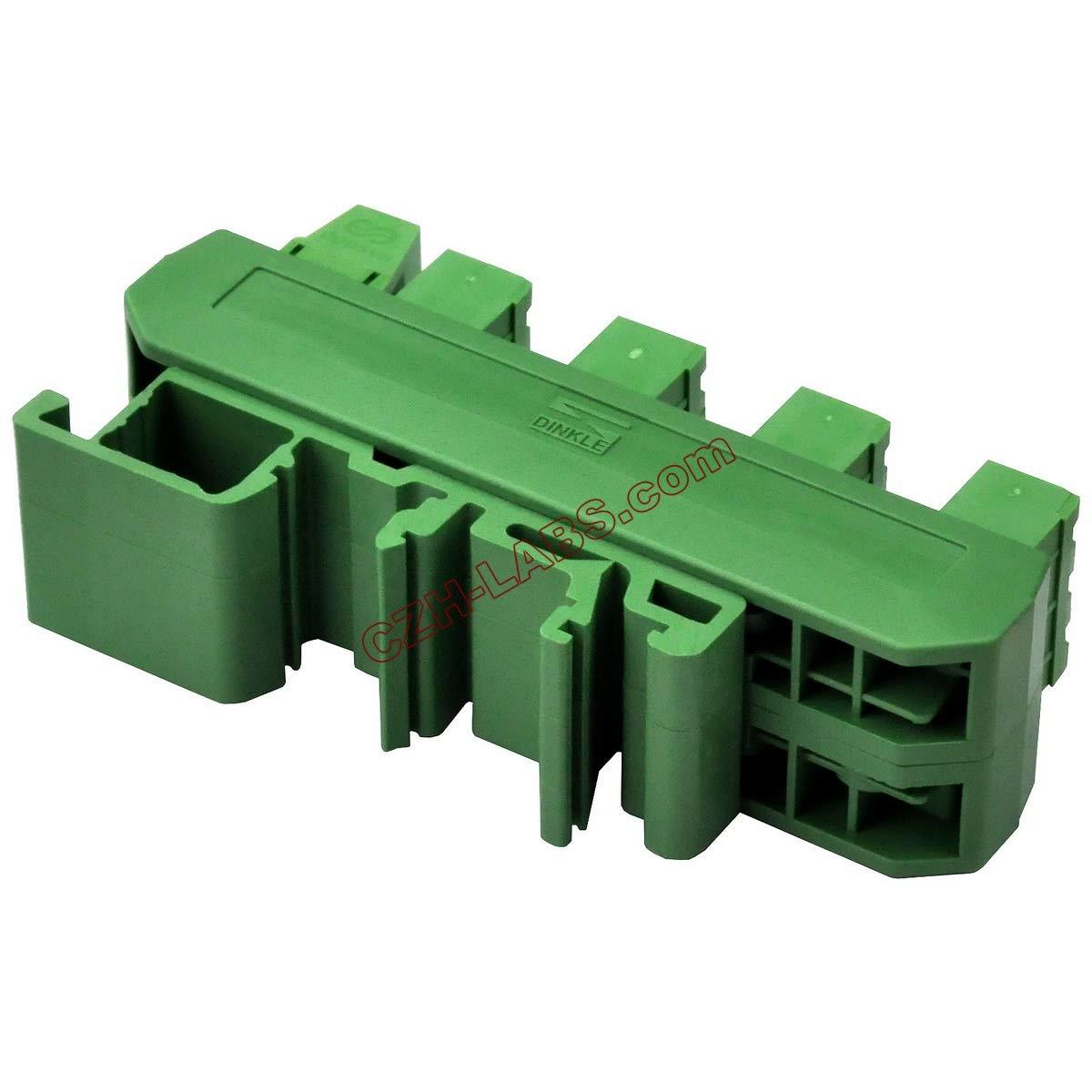

• High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm, 25mm or 15mm rail.
