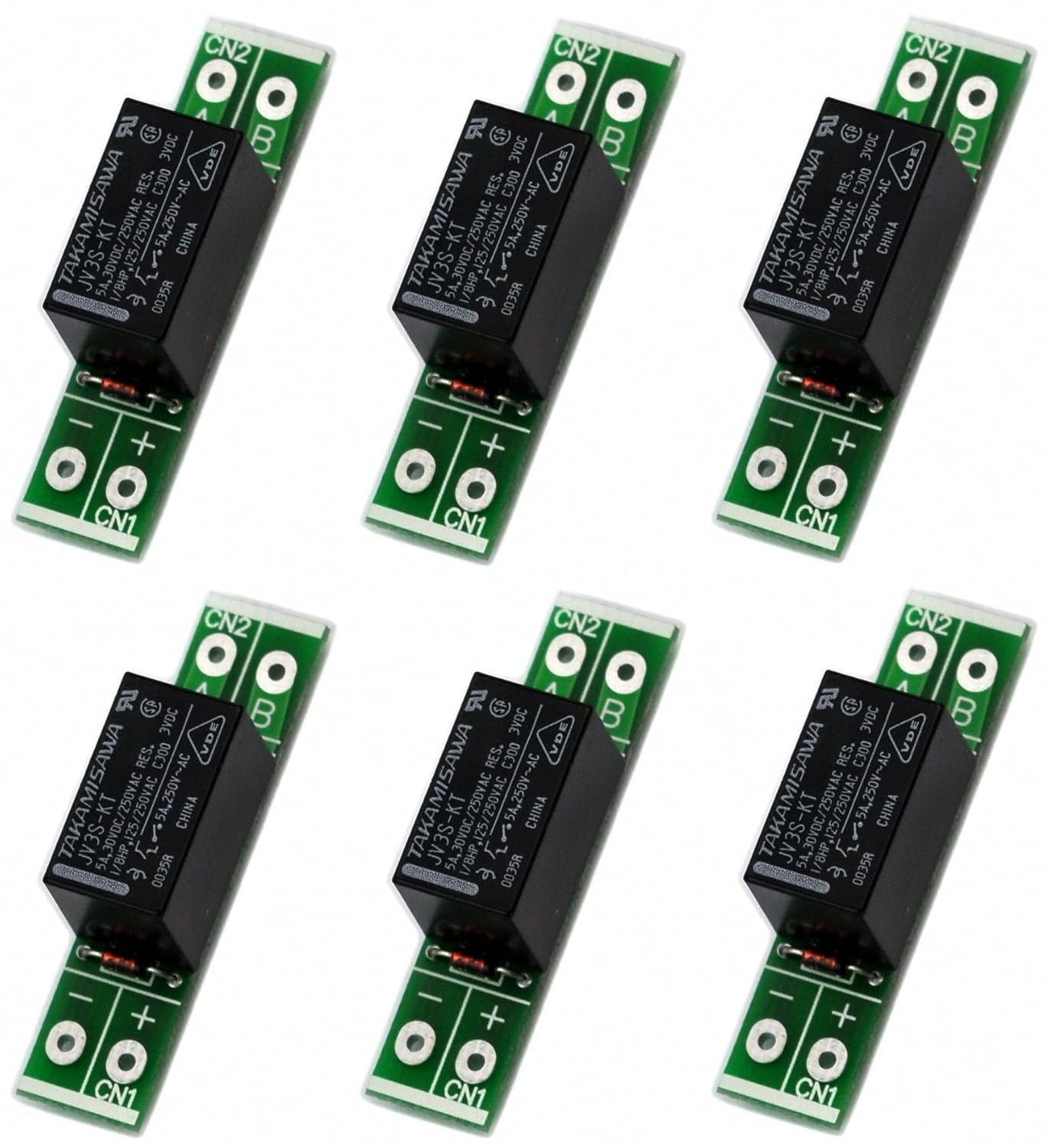

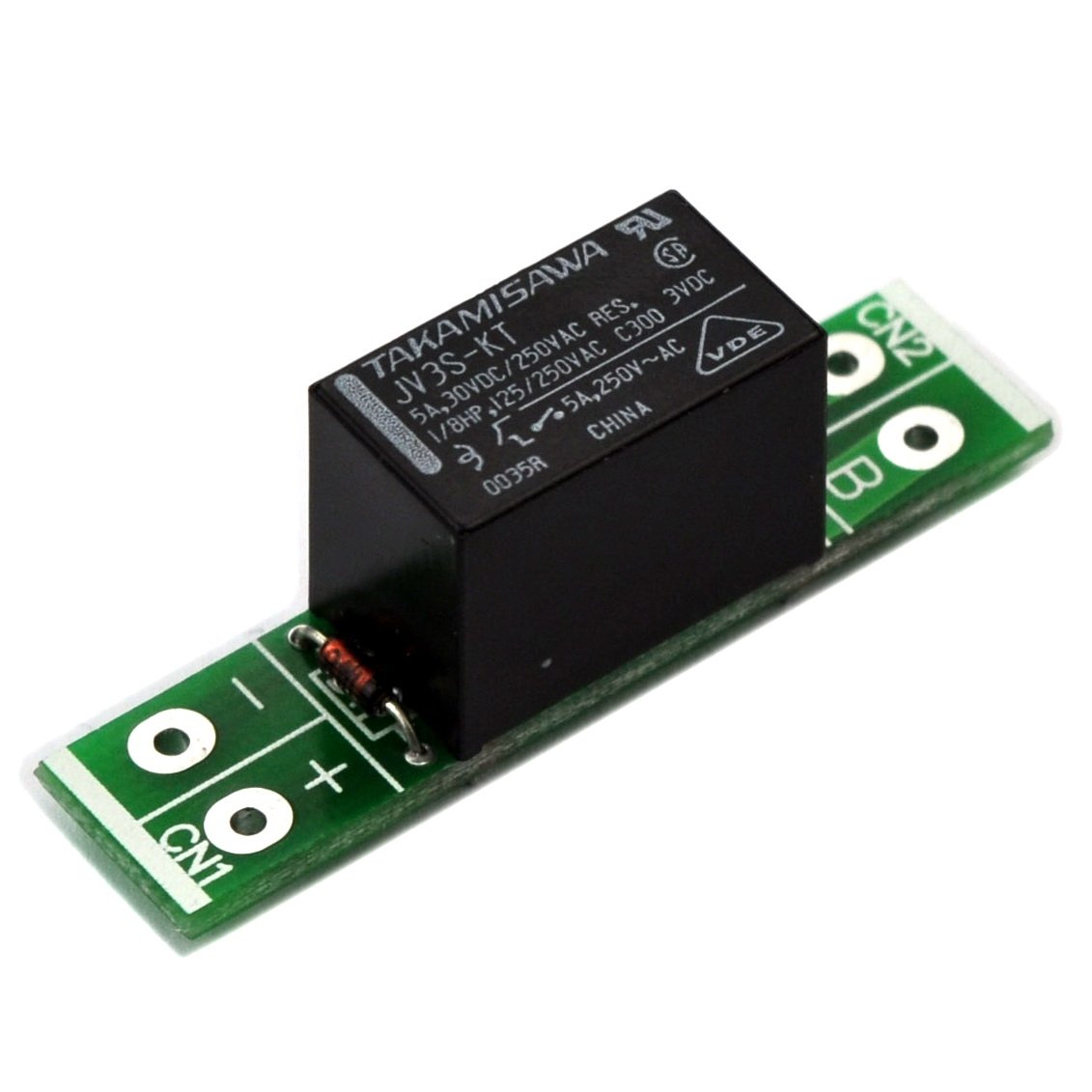

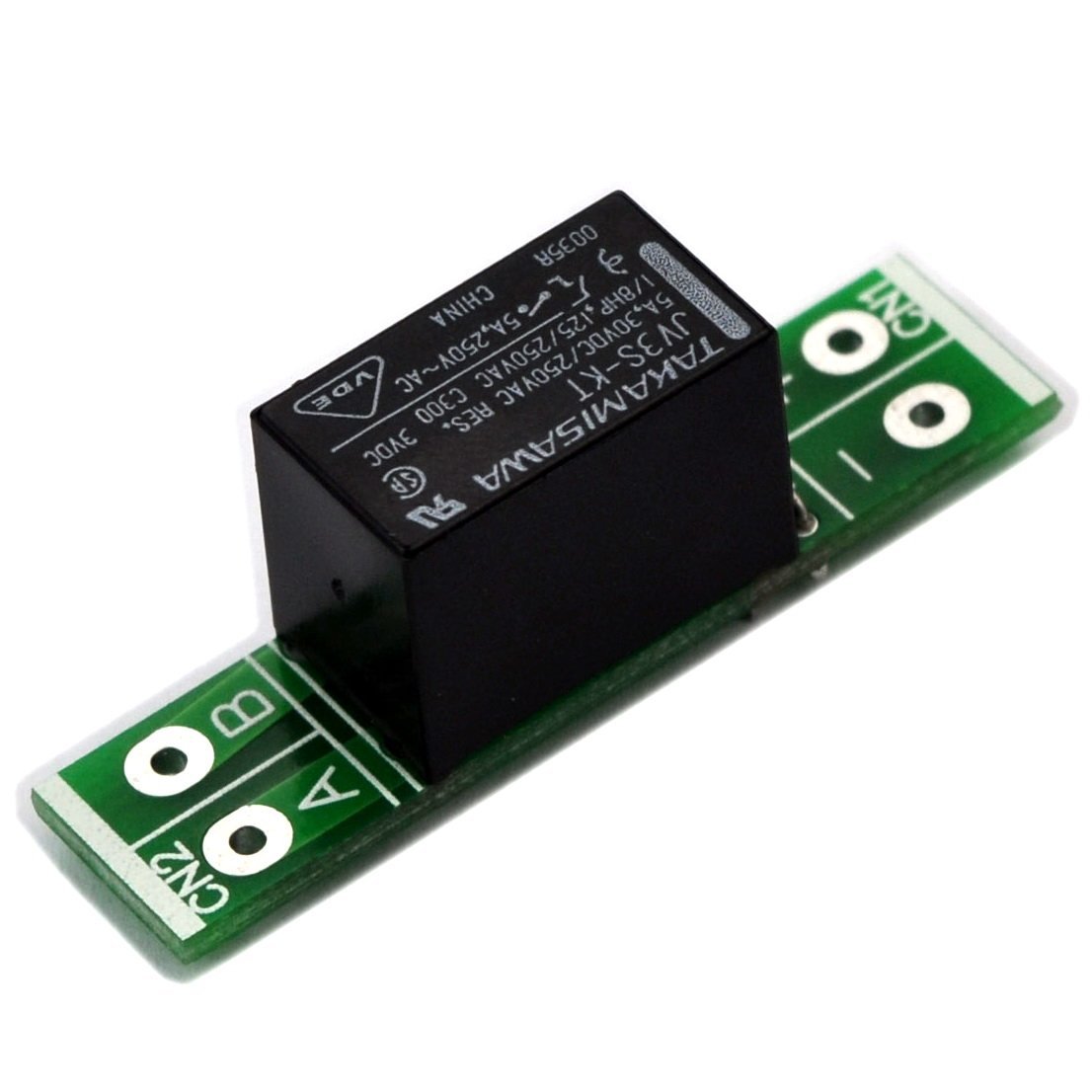

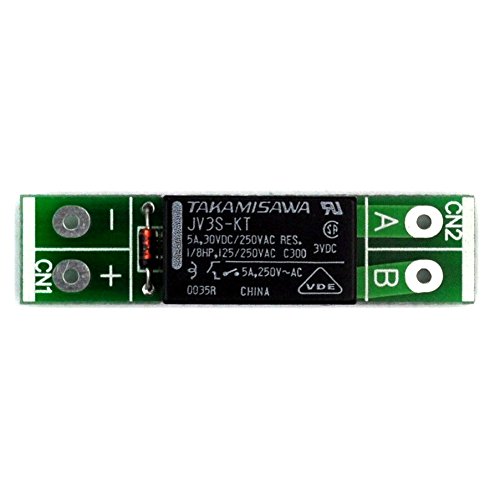

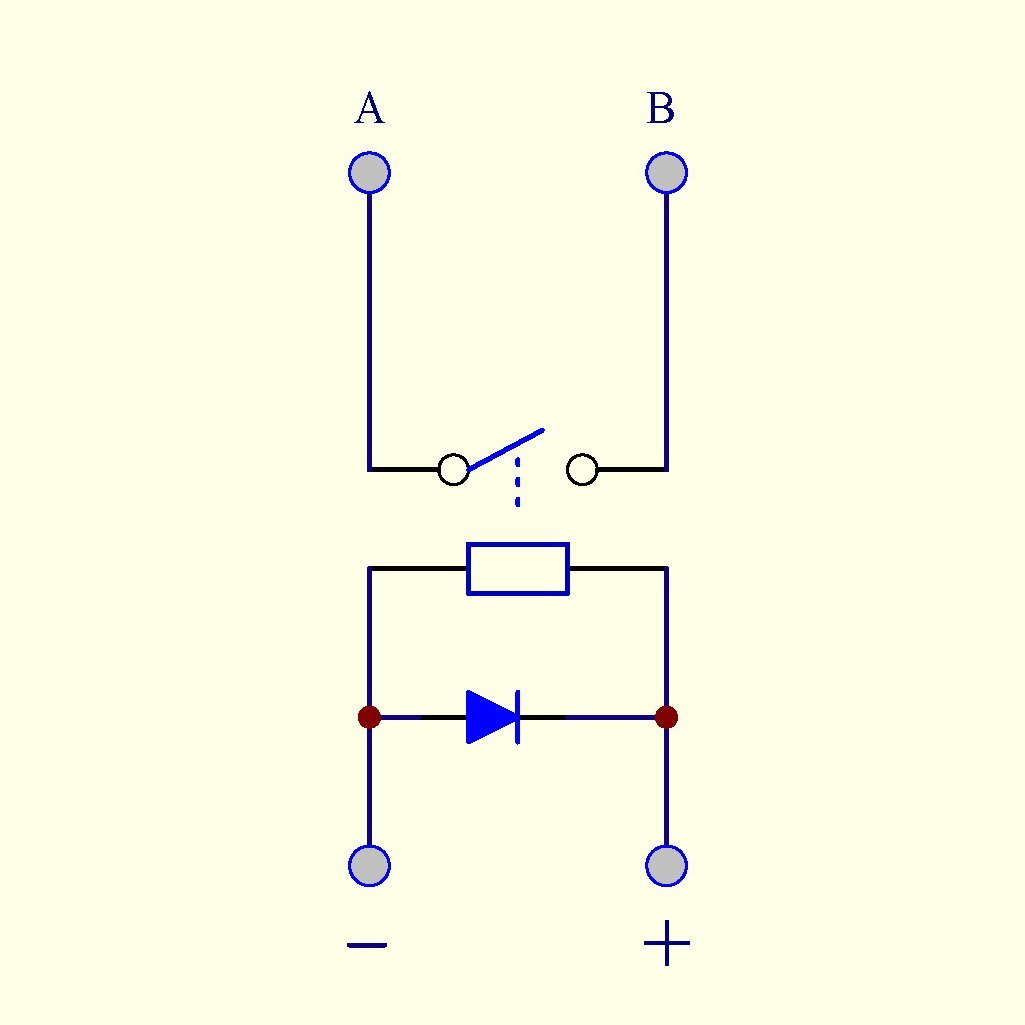

JV 3S-KT relay, FR-4 fiberglass PCB, 1N4148 freewheeling diode, all has been soldered and test passed.
Input control singal: 3VDC / 100mA, Outupt switch Contact rating: 5A/250VAC or 5A/30VDC.
Switch configuration: 1 form A (SPST-NO).

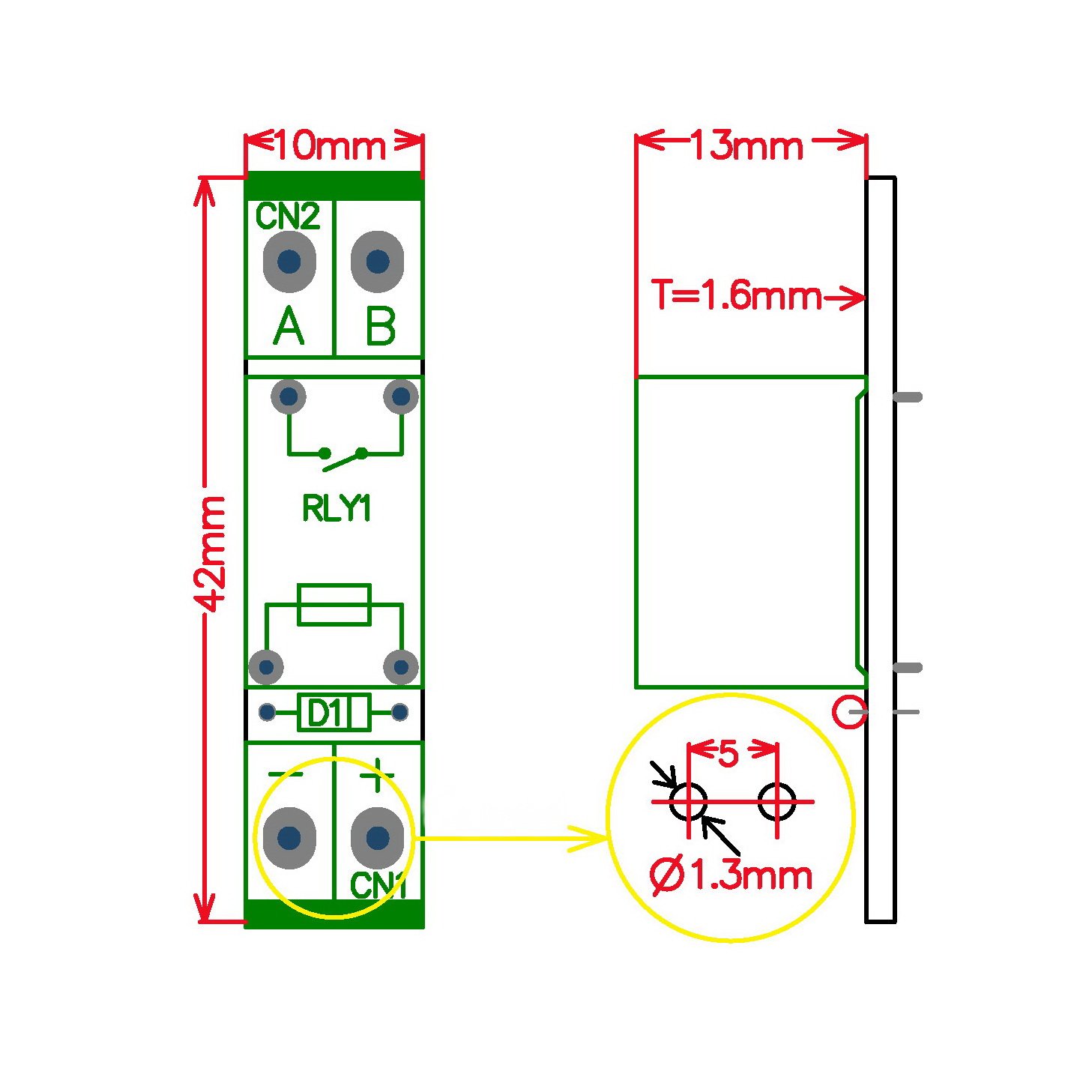

Other, the input and output no terminal block, if you want use terminal block to connect wires, you can mount pitch 5.0 / 5.08mm standard terminal block. we recommend the terminal ASIN B017KAX9VO
