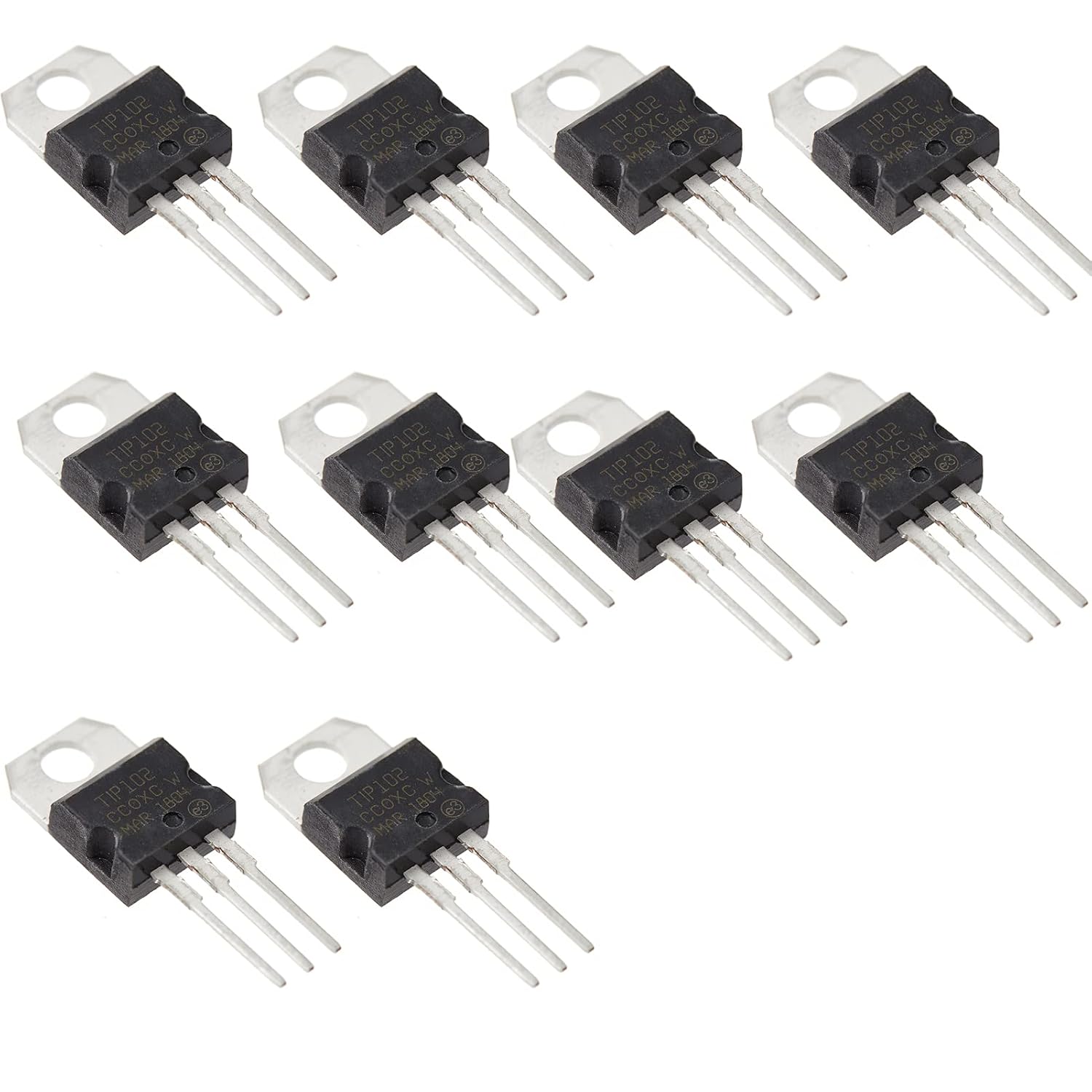

Bridgold 10pcs TIP102 102 Bipolar (BJT) Single NPN Darlington Transistor, 100 V/8 A,3-Pin TO-220

$725.99 USD $729.99 USD Salvar $4.00 USD

Frete calculado no checkout

Qtd

High DC Current Gain hFE = 2500 (Typ) @ IC = 4.0 Adc
CollectorEmitter Sustaining Voltage @ 30 mAdc VCEO(sus) = 100 Vdc (Min) TIP102, TIP107
Monolithic Construction with Builtin BaseEmitter Shunt Resistors
Low CollectorEmitter Saturation Voltage VCE(sat) = 2.0 Vdc (Max) @ IC = 3.0 Adc = 2.5 Vdc (Max) @ IC = 8.0 Adc
We have undergone rigorous testing and stable performance
